Front Seatbelt Retractor and Pretensioner — 2016 workshop reference 1729

Torque : 30 lb.ft (40 Nm)

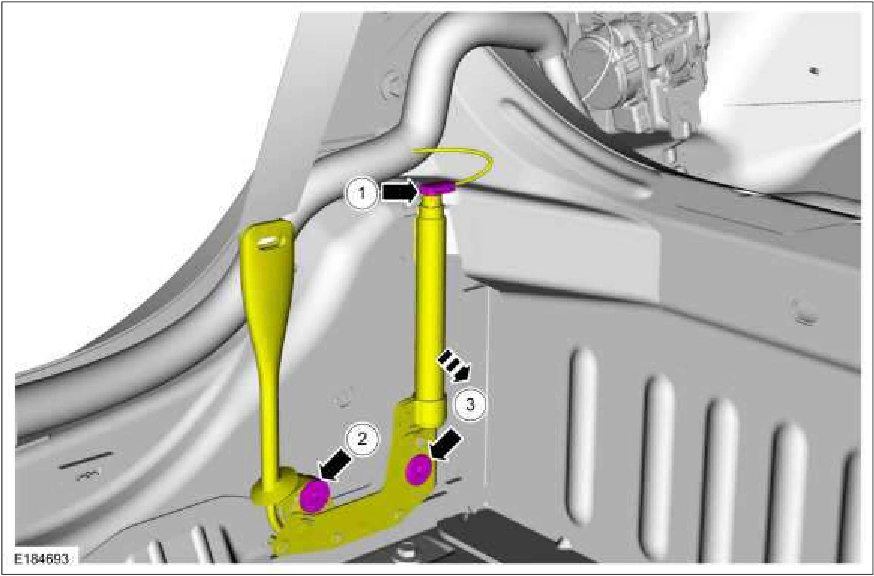

Front Seatbelt Retractor and Pretensioner — original illustration 1, reference 1729Original colors & callouts · Select to enlarge

Convertible

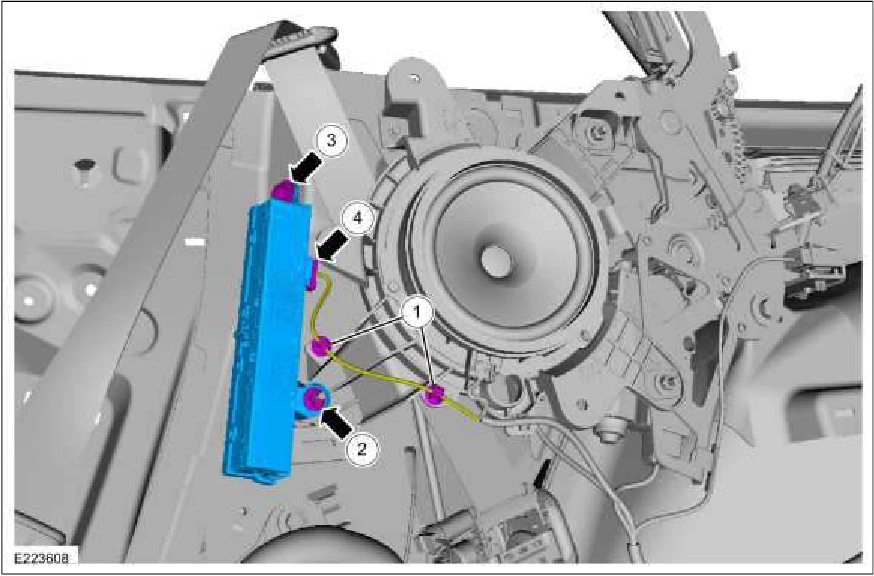

5. For the RH side, remove the RTM.

1. Detach the wire harness retainers.

2. Remove the nut. Torque : 71 lb.in (8 Nm)

3. Remove the bolt. Torque : 17 lb.in (1.9 Nm)

4. Disconnect the electrical connector.

Front Seatbelt Retractor and Pretensioner — original illustration 2, reference 1729Original colors & callouts · Select to enlarge

Source reference 1729
