Front Seatbelt Buckle

501-20A Seatbelt Systems 2016 Mustang

Removal and Installation Procedure revision date: 04/21/2015

Base Part Number: 61202

Removal

NOTE: LHD passenger seat shown, all other seats similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front seat. Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

2. Remove the front safety belt buckle.

1. Remove the wire harness retainers.

2. Disconnect the safety belt buckle electrical connector.

3. Remove the retainer and the safety belt buckle. Torque : 30 lb.ft (40 Nm)

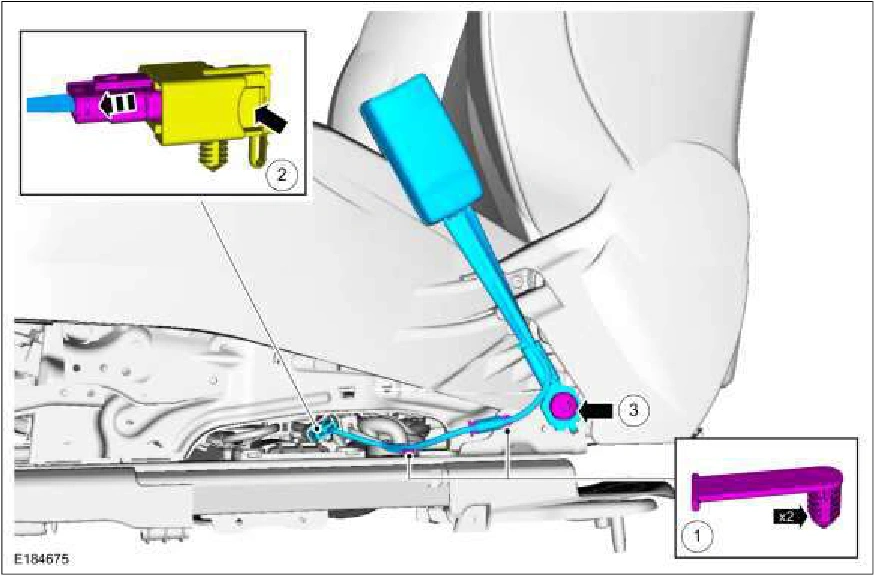

Front Seatbelt Buckle — original illustration 1, reference 1727Original colors & callouts · Select to enlarge

Installation

1. NOTE: During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

To install, reverse the removal procedure.

2. Check the active restraint system for correct operation. Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
