Child Safety Seat Tether Anchor

501-20A Seatbelt Systems 2016 Mustang

Removal and Installation Procedure revision date: 04/16/2015

Removal

NOTE: LHD shown, RHD similar.

NOTE: RH shown, LH similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

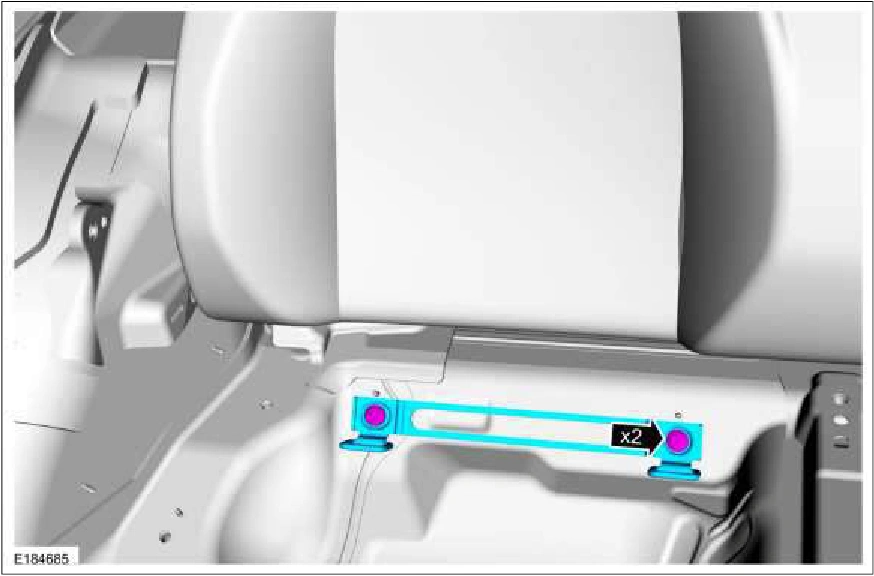

2. Remove the retainers and the child safety seat tether anchor. Torque : 30 lb.ft (40 Nm)

Child Safety Seat Tether Anchor — original illustration 1, reference 1726Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1726
