Seatbelt Tongue Rotated On Belt

501-20A Seatbelt Systems 2016 Mustang

General Procedures Procedure revision date: 07/15/2014

Adjustment

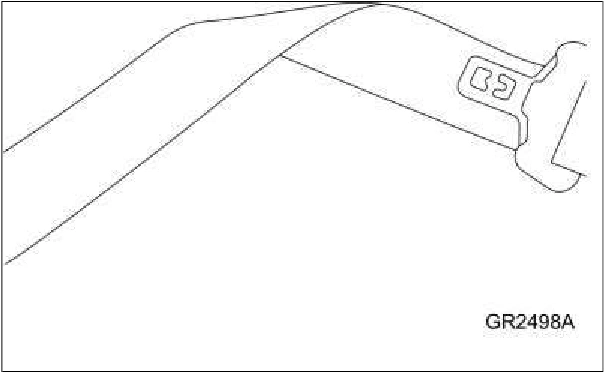

1. Fold the safety belt as indicated.

Seatbelt Tongue Rotated On Belt — original illustration 1, reference 1723Original colors & callouts · Select to enlarge

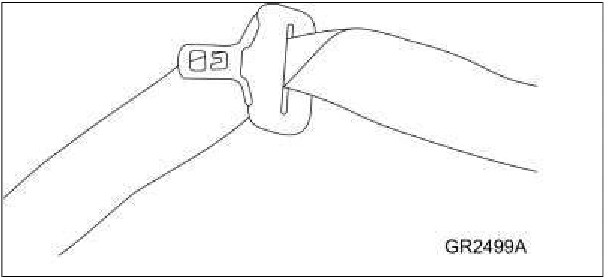

2. Pull the safety belt tongue over the fold in the safety belt.

Seatbelt Tongue Rotated On Belt — original illustration 2, reference 1723Original colors & callouts · Select to enlarge
