Seatbelt Twisted at the Seatbelt Guide

501-20A Seatbelt Systems 2016 Mustang

General Procedures Procedure revision date: 02/9/2015

Adjustment

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in

section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

2. If necessary, remove necessary trim panel(s).

3. NOTE: Typical D-ring shown, others similar.

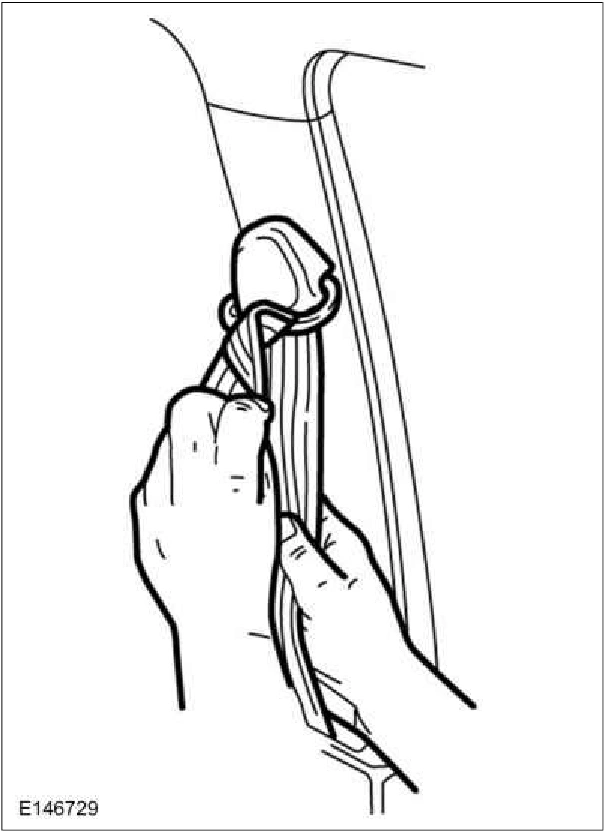

Grasp the safety belt webbing at the D-ring and fold the twisted portion of the safety belt webbing over itself.

Seatbelt Twisted at the Seatbelt Guide — original illustration 1, reference 1724Original colors & callouts · Select to enlarge

4. Feed the folded portion of the safety belt webbing through the D-ring to remove the twist from the safety belt webbing.

Source reference 1724
