No | GO to A8 |
|---|
A8 CHECK THE BELT TENSION SENSOR (BTS) SIGNAL CIRCUIT FOR AN OPEN

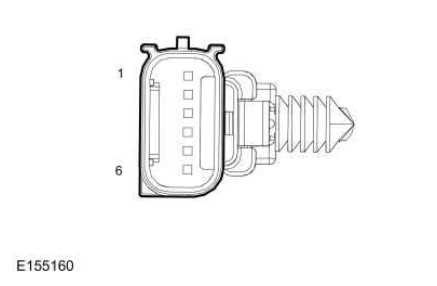

Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3238-1 | C3043-6 |
Is the resistance less than 0.5 ohm?
Yes | GO to A10 |
|---|---|
No | REPAIR the circuit. Refer to Wiring Diagrams Cell 5 for schematic and connector information. GO to A13 |
A9 CHECK THE BELT TENSION SENSOR (BTS) SIGNAL CIRCUIT FOR A SHORT TO THE BELT TENSION SENSOR (BTS) VREF CIRCUIT
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment. Ignition OFF. Disconnect OCSM C3043. Disconnect Passenger Safety Belt Buckle C3238. Measure:

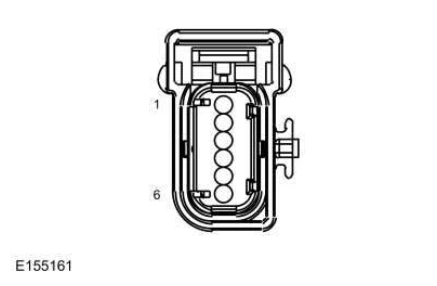

Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3238-2 | C3238-1 |
Is the resistance greater than 10,000 ohms?
Yes | GO to A10 |
|---|---|
No | REPAIR the circuits. Refer to Wiring Diagrams Cell 5 for schematic and connector information. GO to A13 |
A10 CHECK BELT TENSION SENSOR (BTS) VOLTAGE OUTPUT
Ignition OFF. Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures). Connect OCSM C3043. Disconnect Passenger Side Airbag (Inline) C219. Connect fused jumper wires:
Lead 1 | Measurement / Action | Lead 2 |
|---|---|---|
C3238, pin 2, harness side | C3238, pin 2, component side |
