501-20B Supplemental Restraint System 2016 Mustang

Removal and Installation Procedure revision date: 04/13/2015

Clockspring

Base Part Number: 14A664

Removal

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details .

1. Remove the following items:

1. NOTE: Follow the unique instructions or graphic for this step in installation.

Refer to: Steering Wheel (211-04 Steering Column, Removal and Installation).

2. Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

2. Disconnect the electrical connectors.

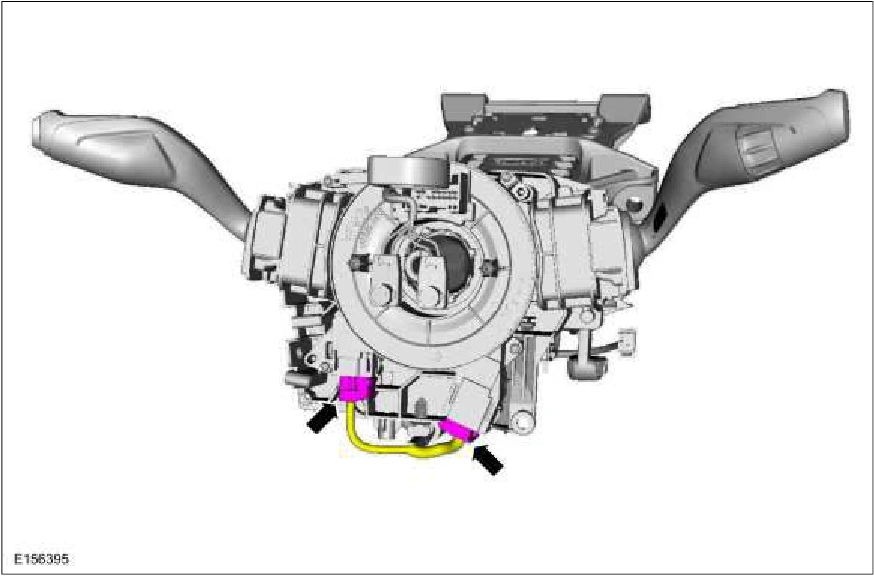

Clockspring — original illustration 1, reference 2119Original colors & callouts · Select to enlarge

3. Remove the screws and the clockspring.

Source reference 2119
