Installation
NOTICE: If installing a new clockspring, do not remove the clockspring anti-rotation key until the steering wheel is installed. If the anti-rotation key has been removed before installing the steering wheel, the clockspring must be centered. Failure to follow this instruction may result in component damage and/or system failure.

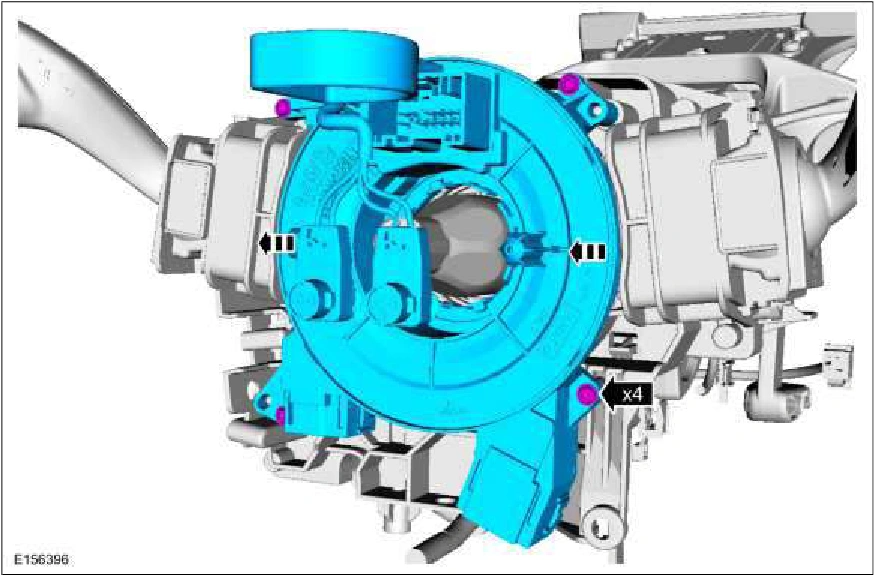

1. To install, reverse the removal procedure.
2. NOTE: This step is only necessary if adjustment is required.
Adjust the clockspring. Refer to: Clockspring Adjustment (501-20B Supplemental Restraint System, General Procedures).
3. NOTE: To install, remove the anti-rotation key from a new clockspring after installing the steering wheel.
Install the steering wheel. Refer to: Steering Wheel (211-04 Steering Column, Removal and Installation).
