Passenger Knee Airbag

501-20B Supplemental Restraint System

2016 MustangReference 2,156 / 6,619HTML edition
← Chapter contentsProcedure contents

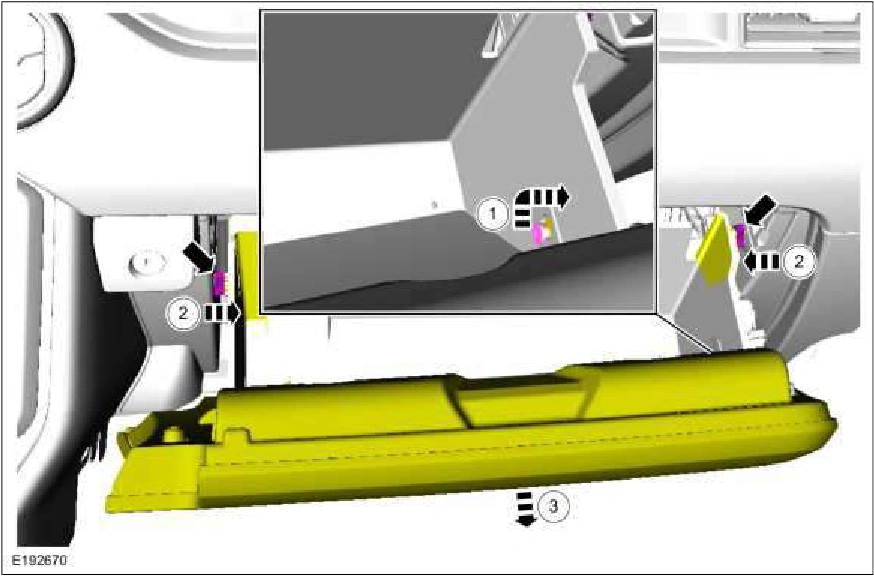

Passenger Knee Airbag — original illustration 1, reference 2156Original colors & callouts · Select to enlarge

6.

1. Disconnect and detach the electrical connector and wire harness.

2. Remove the upper screws. Torque : 22 lb.in (2.5 Nm)

3. Remove the lower screws. Torque : 44 lb.in (5.0 Nm)

4. Separate the glove box assembly from the instrument panel.

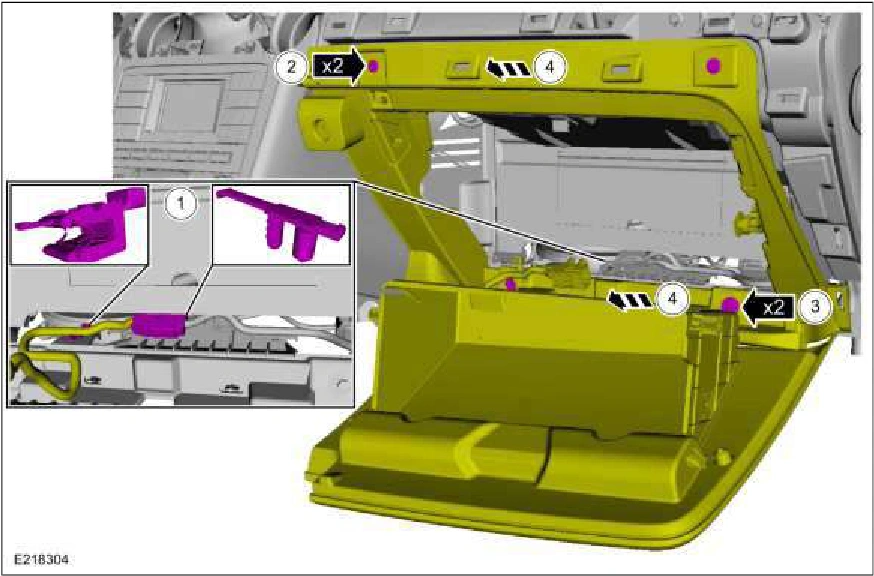

Passenger Knee Airbag — original illustration 2, reference 2156Original colors & callouts · Select to enlarge

7. Disconnect the electrical connector and remove the glove box assembly.

Source reference 2156
