Passenger Knee Airbag

501-20B Supplemental Restraint System

2016 MustangReference 2,154 / 6,619HTML edition
← Chapter contentsProcedure contents

501-20B Supplemental Restraint System 2016 Mustang

Removal and Installation Procedure revision date: 08/10/2015

Passenger Knee Airbag

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: LHD shown, RHD similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).

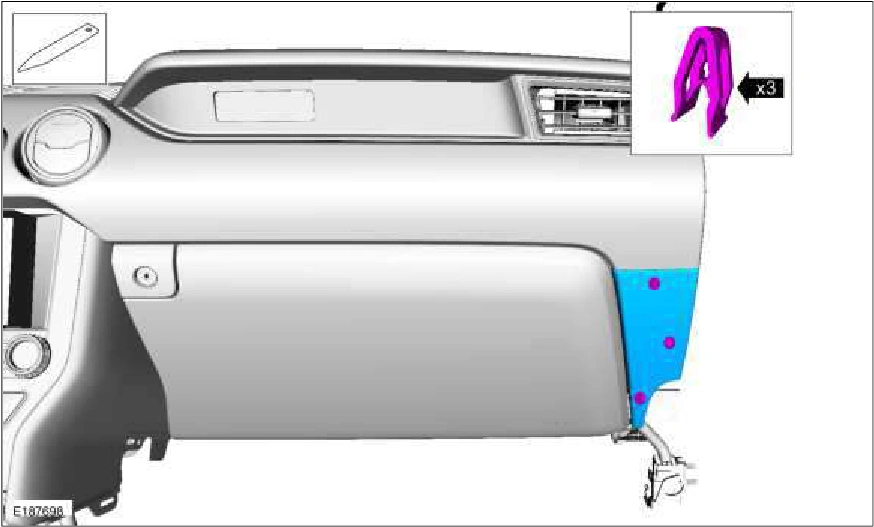

2. Release the clips and remove the RH instrument panel trim panel. Use the General Equipment: Interior Trim Remover

Passenger Knee Airbag — original illustration 1, reference 2154Original colors & callouts · Select to enlarge

3. NOTE: Instrument panel center finish panel with optional ICM shown.

Release the clips and remove the instrument panel center finish panel.

Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
