Passenger Airbag — 2016 workshop reference 2151

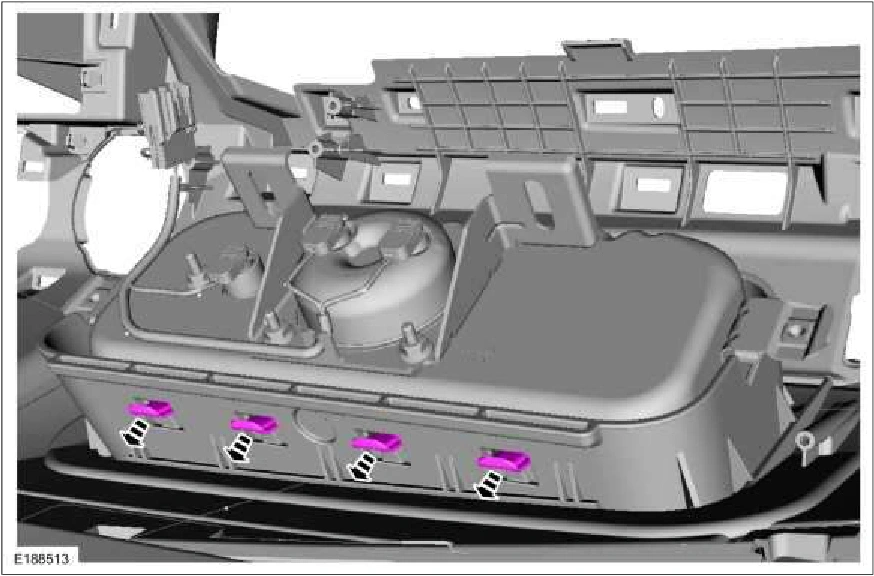

3. Engage the passenger airbag retainers to the deployment chute.

Passenger Airbag — original illustration 1, reference 2151Original colors & callouts · Select to enlarge

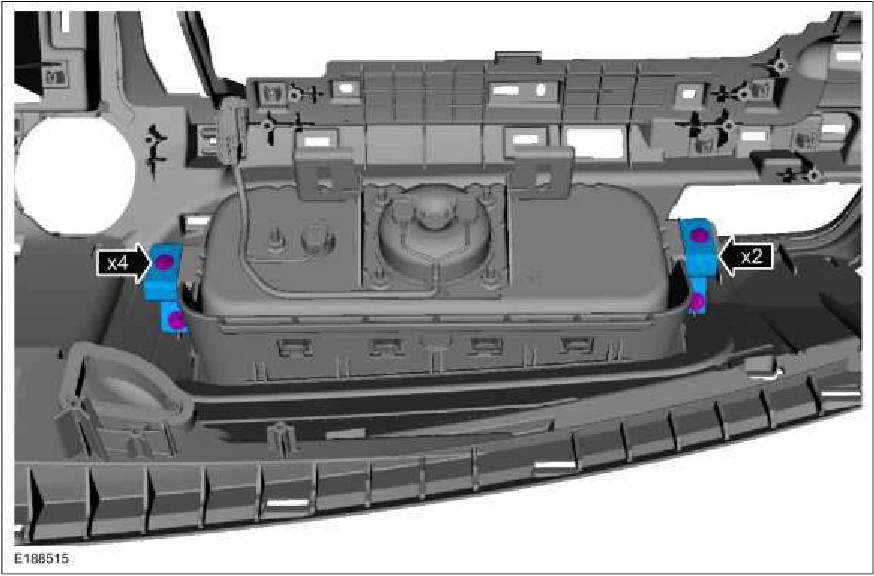

4. Install the brackets and screws. Torque : 22 lb.in (2.5 Nm)

Passenger Airbag — original illustration 2, reference 2151Original colors & callouts · Select to enlarge

5. Install the air conditioning duct and screws.
