Passenger Airbag — 2016 workshop reference 2148

Passenger Airbag — original illustration 1, reference 2148Original colors & callouts · Select to enlarge

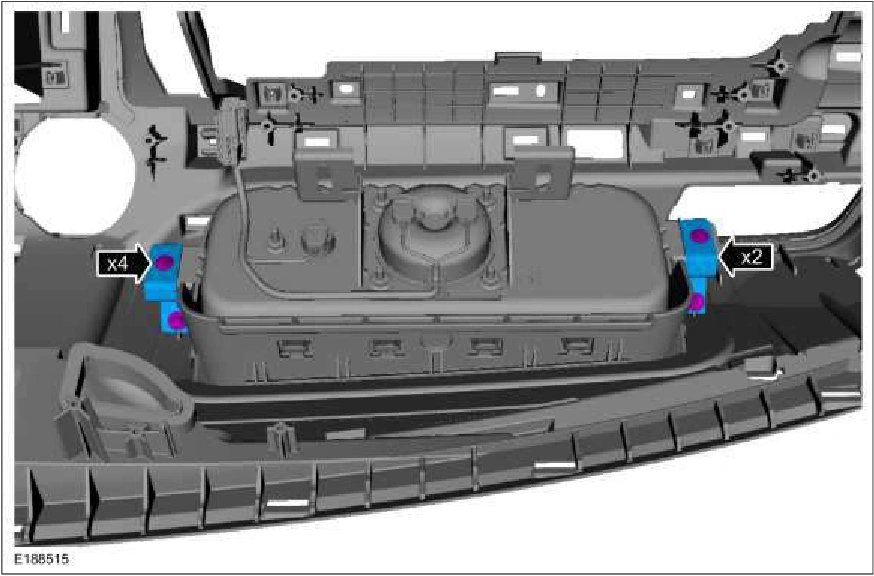

5. Remove the screws and brackets.

Passenger Airbag — original illustration 2, reference 2148Original colors & callouts · Select to enlarge

Step 6

1. Pull the passenger airbag deployment chute away from the passenger airbag.

2. Rotate the passenger airbag out of the deployment chute and disengage the 4 passenger airbag retainers.

Source reference 2148
