Passenger Airbag
Base Part Number: 044A74
Removal
WARNING: The following procedure prescribes critical repair steps required for correct supplemental restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the supplemental restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: LH drive shown, RH drive similar.
1. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).
2. Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).

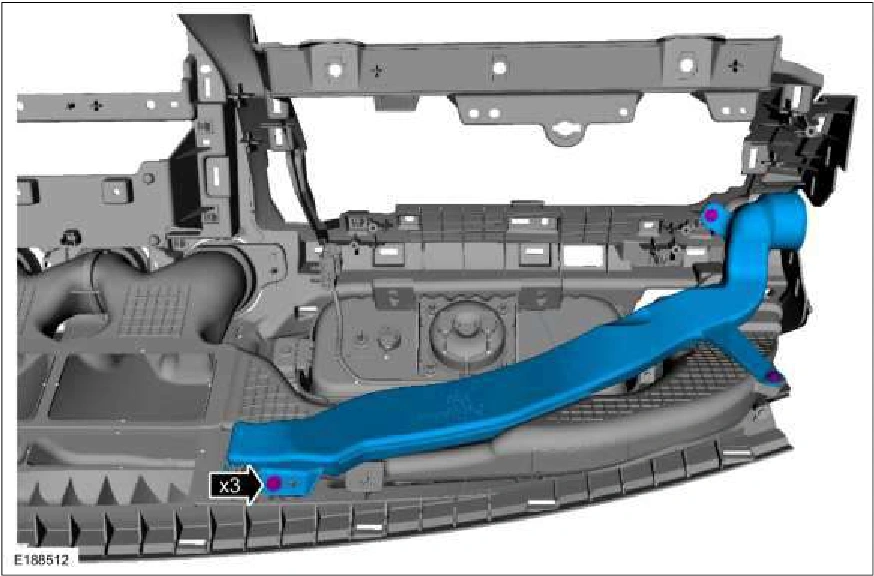

3. NOTE: RH side shown, LH similar.
On both sides. Remove the screws and the demister duct.
4. Remove the screws and the air conditioning duct.
