Occupant Classification System (OCS) Sensor — 2016 workshop reference 2144

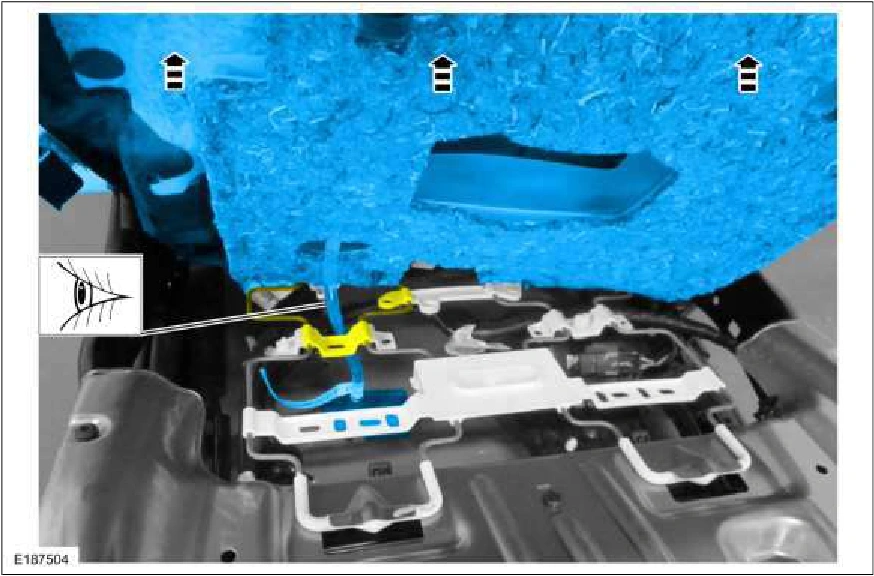

Occupant Classification System (OCS) Sensor — original illustration 1, reference 2144Original colors & callouts · Select to enlarge

14. NOTICE: Use care when separating the seat cushion from the hook-and-arrow or the hook may be

torn from the seat cushion foam pad.

NOTICE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.

Remove the seat cushion cover.

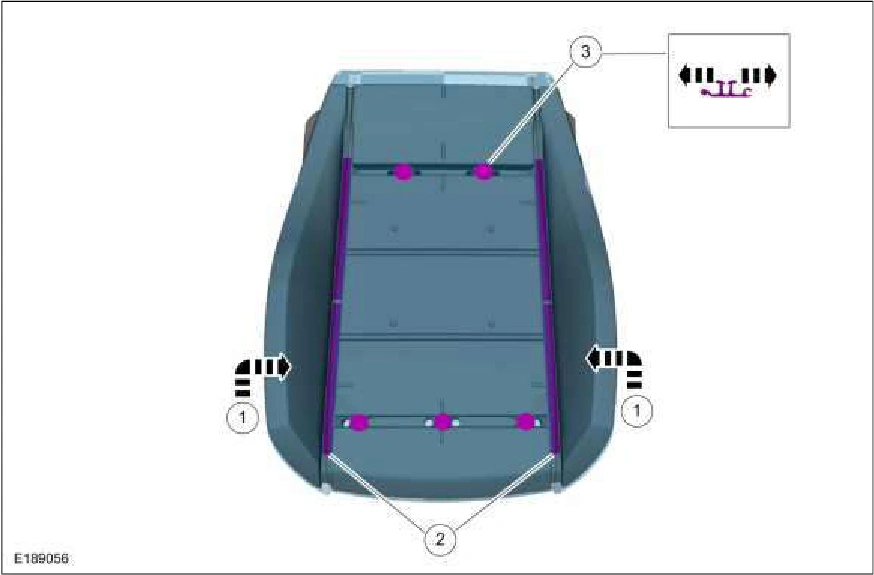

1. Invert the seat cushion cover.

2. Release hook-and-loop strips.

3. Release the hook and arrows.

Occupant Classification System (OCS) Sensor — original illustration 2, reference 2144Original colors & callouts · Select to enlarge

Installation
