Occupant Classification System (OCS) Sensor — 2016 workshop reference 2141

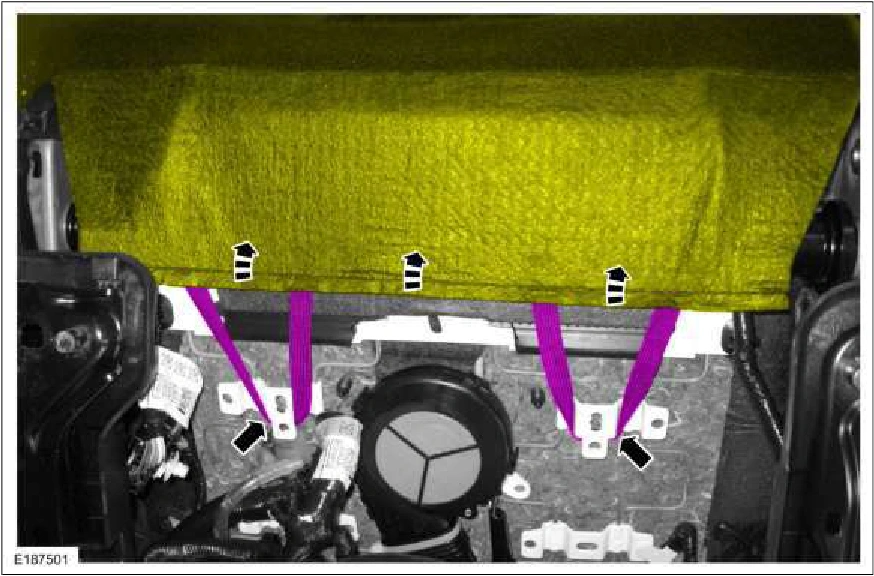

Occupant Classification System (OCS) Sensor — original illustration 1, reference 2141Original colors & callouts · Select to enlarge

8. Detach the 2 cushion cover J-clips and position the cushion cover aside.

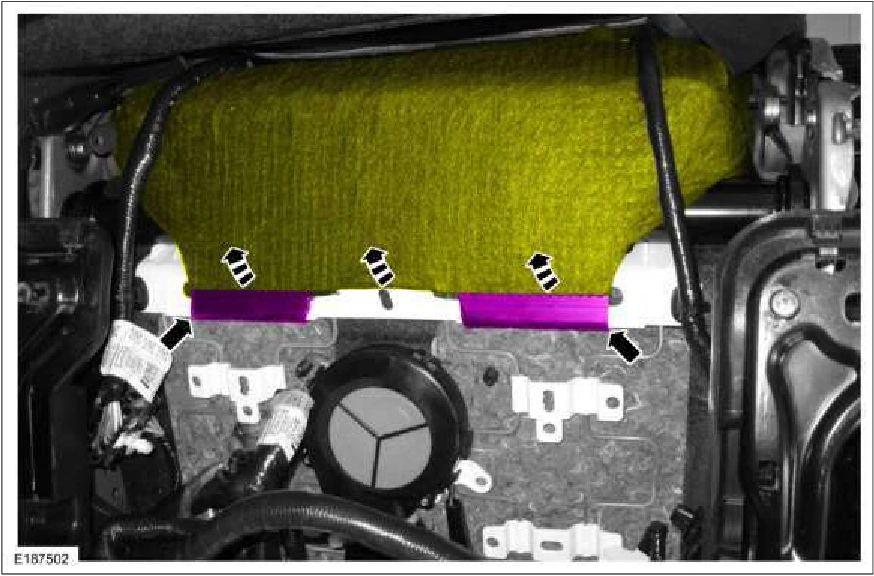

Occupant Classification System (OCS) Sensor — original illustration 2, reference 2141Original colors & callouts · Select to enlarge

9. NOTICE: Using excessive force when bending the bracket tab can damage the OCS sensor

housing.

NOTE: Follow the unique instructions or graphic for this step in the installation.

Disconnect the electrical connector, bend the bracket tab away and slide the OCS sensor off the bracket.

Source reference 2141
