Occupant Classification System (OCS) Sensor

501-20B Supplemental Restraint System

2016 MustangReference 2,140 / 6,619HTML edition

← Chapter contents Procedure contents

Occupant Classification System (OCS) Sensor — original illustration 1, reference 2140Original colors & callouts · Select to enlarge

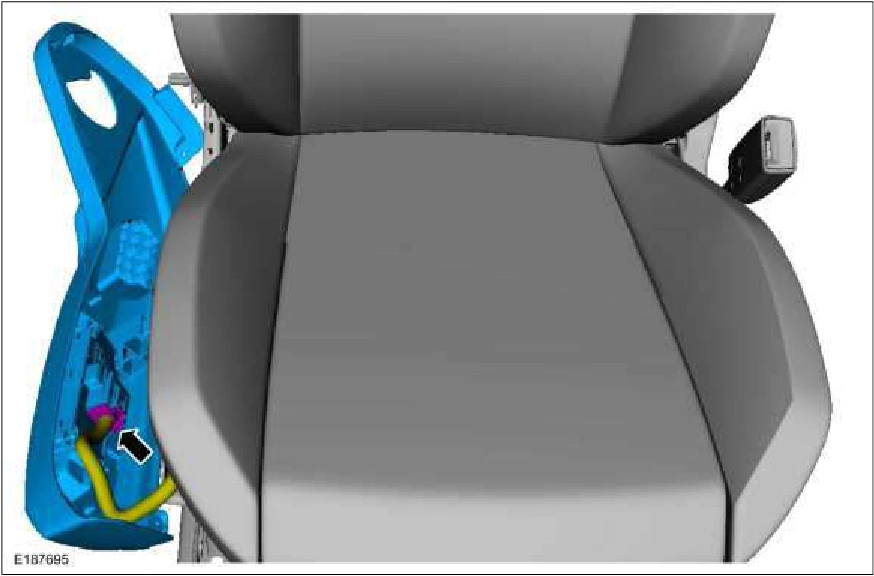

6. Detach the 2 electrical connector pin-type retainers and position aside.

Occupant Classification System (OCS) Sensor — original illustration 2, reference 2140Original colors & callouts · Select to enlarge

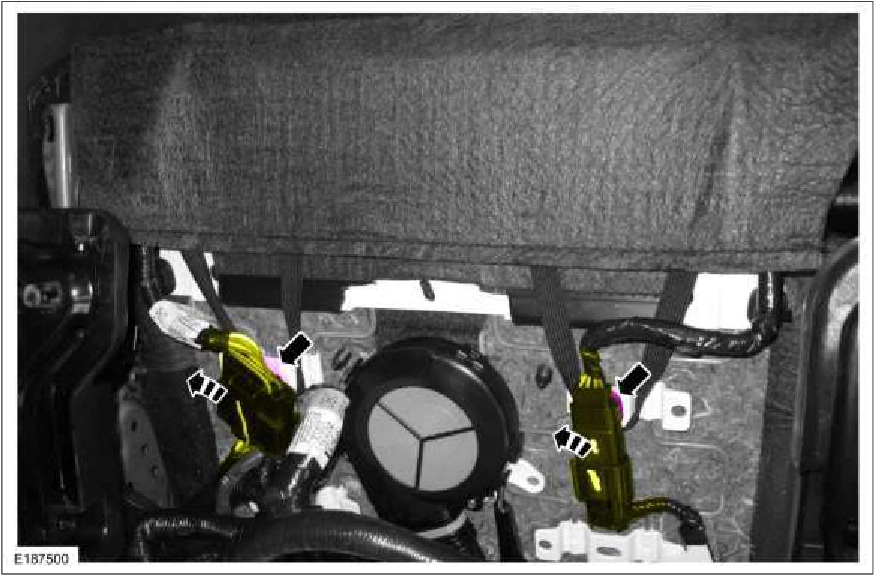

7. Detach the 2 backrest cover straps and position the backrest cover aside.
