Occupant Classification System (OCS) Sensor — 2016 workshop reference 2139

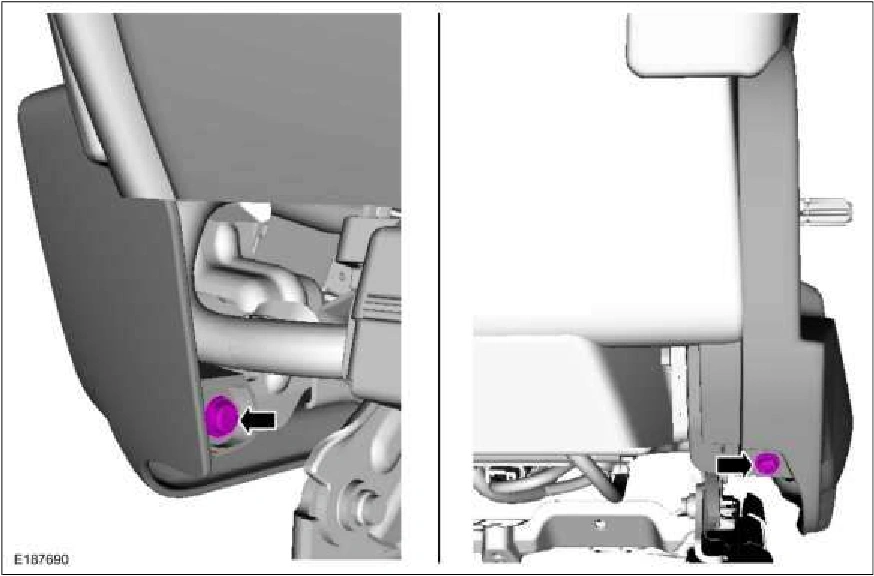

Occupant Classification System (OCS) Sensor — original illustration 1, reference 2139Original colors & callouts · Select to enlarge

Step 4

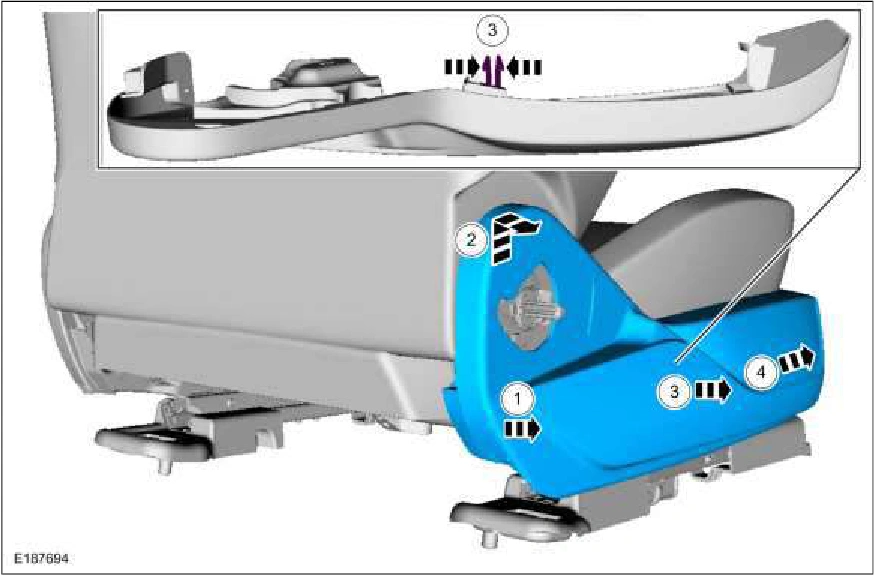

1. Pull the rear of the cushion side shield out.

2. Firmly grasp the cushion side shield, lift up and out, separating the cushion side shield from the recliner bracket.

3. If equipped with a manual seat track, from underneath, squeeze the retainers together and pull out on the cushion side shield.

4. Slide the cushion side shield forward and for a manual seat track, remove the cushion side shield.

Occupant Classification System (OCS) Sensor — original illustration 2, reference 2139Original colors & callouts · Select to enlarge

5. If equipped with a power seat track, disconnect the seat control switch electrical connector and remove the cushion side shield.
