Occupant Classification System (OCS) Sensor

501-20B Supplemental Restraint System

2016 MustangReference 2,142 / 6,619HTML edition

← Chapter contents Procedure contents

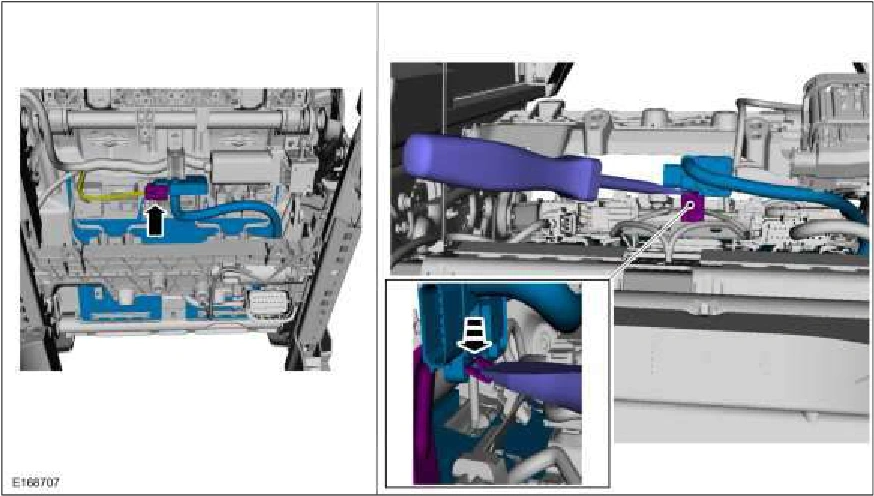

Occupant Classification System (OCS) Sensor — original illustration 1, reference 2142Original colors & callouts · Select to enlarge

Step 10

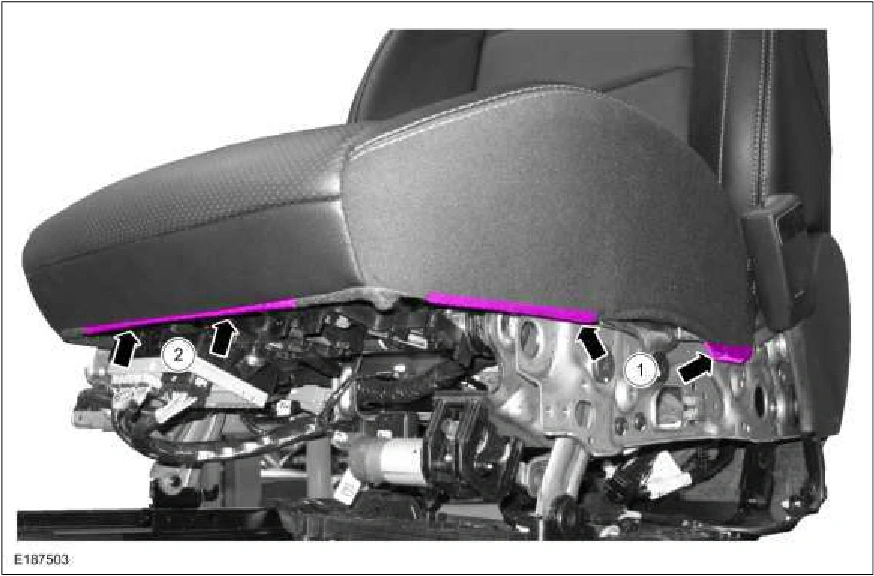

1. On both sides.

Detach the cushion cover J-clips.

2. Detach the cushion cover J-clip.

Occupant Classification System (OCS) Sensor — original illustration 2, reference 2142Original colors & callouts · Select to enlarge

11. If equipped with OE (original equipment) OCS, remove the cushion foam pad and cover.
