1. NOTICE: Inspect the OCS bladder, seat cushion pan and support assembly for any foreign objects
before installing the OCS to the seat cushion pan. Remove any foreign objects. Failure to follow these instructions may result in incorrect operation of the OCS and may cause system failure.
NOTICE: Do not trap the pressure sensor hose incorrectly over the seat's suspension or spring. Route the hose so that it lays in a natural bend, and is not twisted due to being forced into an unnatural position. Failure to follow these instructions may result in component damage and/or system failure.
To install, reverse the removal procedure.

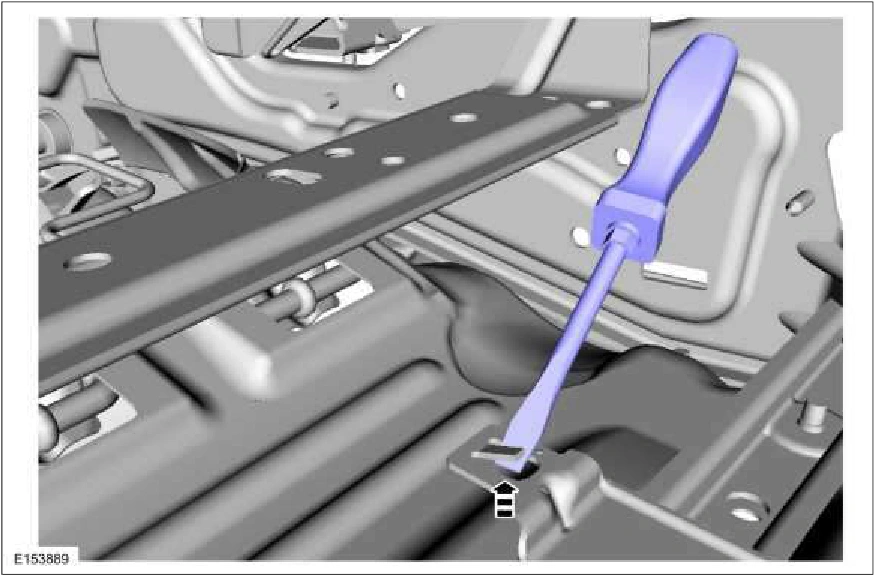

2. Bend the OCS sensor bracket tab back.
3. Install the front passenger seat. Do not prove out the SRS at this time. Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
4. WARNING: Occupant Classification System (OCS) parts are calibrated as an assembly and
must only be replaced in the configuration they are sold. Never separate parts of an assembly. Failure to follow this instruction may result in incorrect operation of the OCS and increases the risk of serious personal injury or death in a crash.
WARNING: Make sure the front passenger seat repair is complete, the seat and all attached components (head restraint, seat side shield, etc.) are correctly assembled, and the seat is correctly installed to the vehicle before using System Reset to rezero the seat weight. Failure to follow these instructions may result in incorrect operation of the occupant classification system (OCS) and increases the risk of serious personal injury or death in a crash.
NOTICE: To prevent system failure, take the following precautions before carrying out the OCS reset.
Make sure the voltage to the OCSM is greater than 8 volts and less than 18 volts. Make sure the OCS is not below 6º C (42.8º F) or above 36º C (96.7º F) when initiating the OCS reset process. If the vehicle has been exposed to extreme cold or hot temperatures, the vehicle must be exposed and kept at a temperature between 6º C (42.8º F) to 36º C (96.7º F) for a minimum of 30 minutes. Make sure nothing is present on the passenger seat before and during the OCS reset process. Prior to carrying out the OCS reset, make sure a minimum of 8 seconds has elapsed after
