Occupant Classification System (OCS) Sensor — 2016 workshop reference 2143

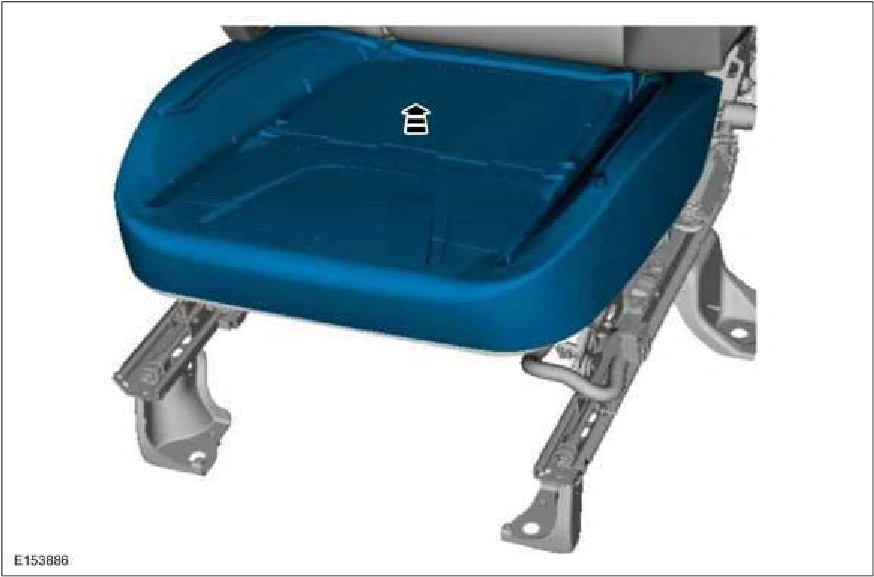

Occupant Classification System (OCS) Sensor — original illustration 1, reference 2143Original colors & callouts · Select to enlarge

12. NOTE: Typical OE OCS shown, service kit similar.

Remove the 2 pin-type retainers.

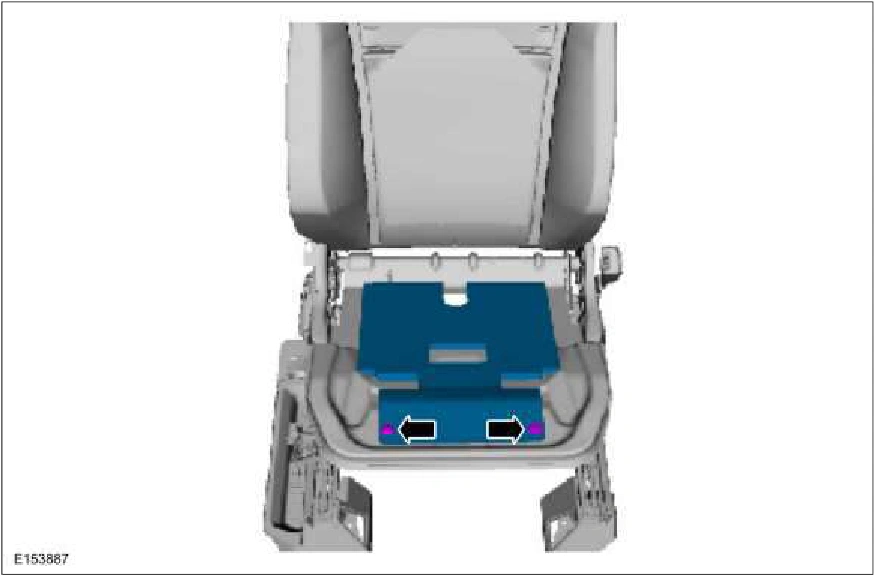

Occupant Classification System (OCS) Sensor — original illustration 2, reference 2143Original colors & callouts · Select to enlarge

13. NOTE: Note the location of the OCS hose as it passes through the seat springs for proper installation.

Route out the OCS hose and sensor from between the seat cushion support wires.
