Front Impact Severity Sensor

501-20B Supplemental Restraint System 2016 Mustang

Removal and Installation Procedure revision date: 04/13/2015

Base Part Number: 14B004

Removal

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

1. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).

2. Remove the retainers and the radiator upper air deflector.

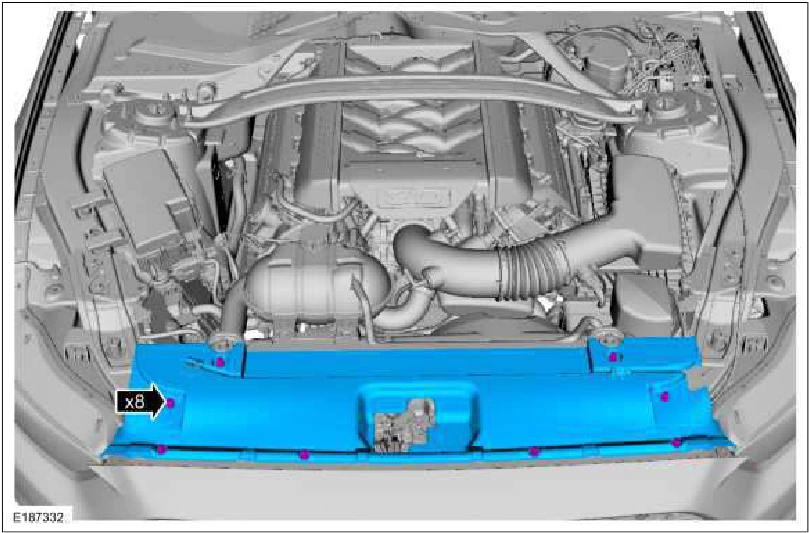

Front Impact Severity Sensor — original illustration 1, reference 2136Original colors & callouts · Select to enlarge

Step 3

1. Disconnect the electrical connector.

2. Remove the nut. Torque : 93 lb.in (10.5 Nm)

3. Remove the front impact severity sensor.

Source reference 2136
