Front Impact Severity Sensor — 2016 workshop reference 2137

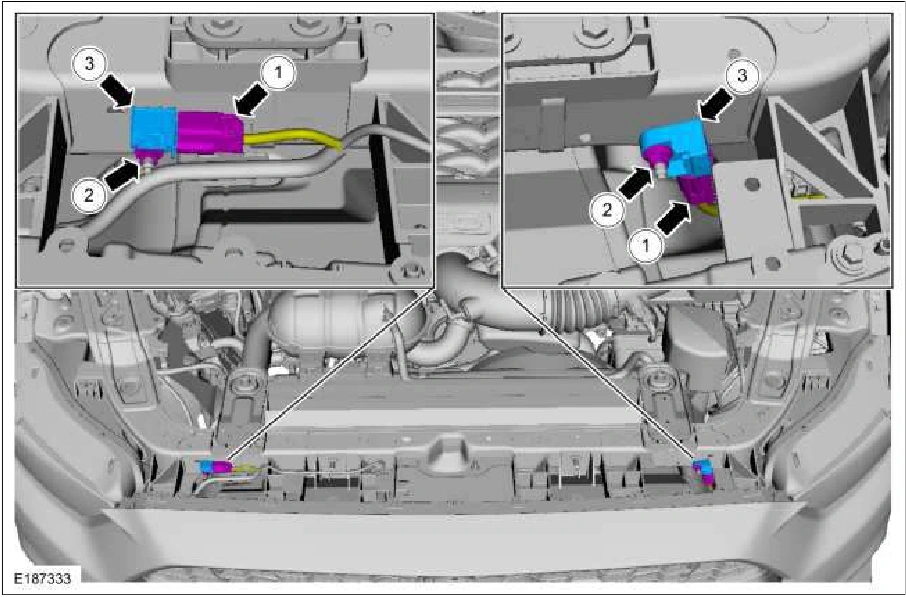

Front Impact Severity Sensor — original illustration 1, reference 2137Original colors & callouts · Select to enlarge

Installation

1. NOTE: The impact sensor mating surfaces must be smooth and allow for a flush attachment to each other.

To install, reverse the removal procedure.

2. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).

Source reference 2137
