Passenger Airbag

501-20B Supplemental Restraint System

2016 MustangReference 2,152 / 6,619HTML edition
← Chapter contentsProcedure contents

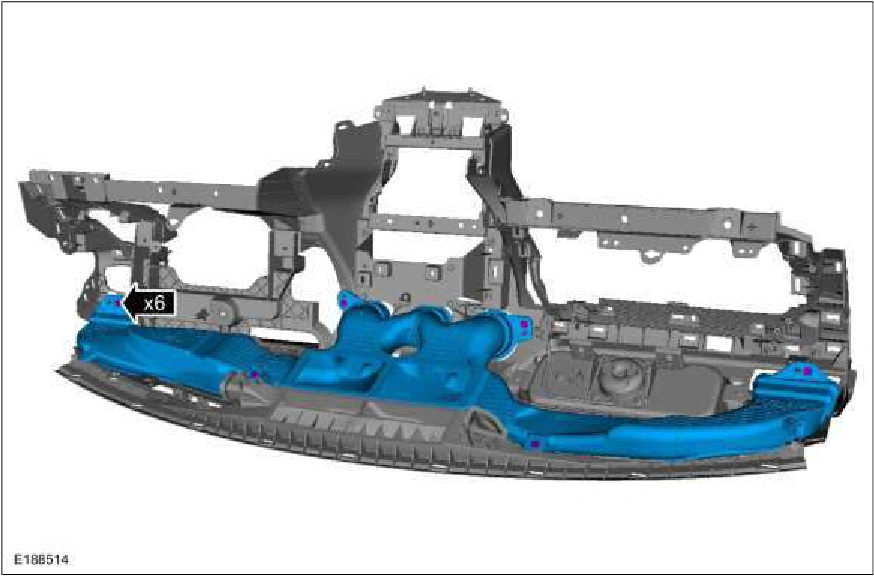

Passenger Airbag — original illustration 1, reference 2152Original colors & callouts · Select to enlarge

6. NOTE: RH side shown, LH similar.

On both sides. Install the demister duct and screws.

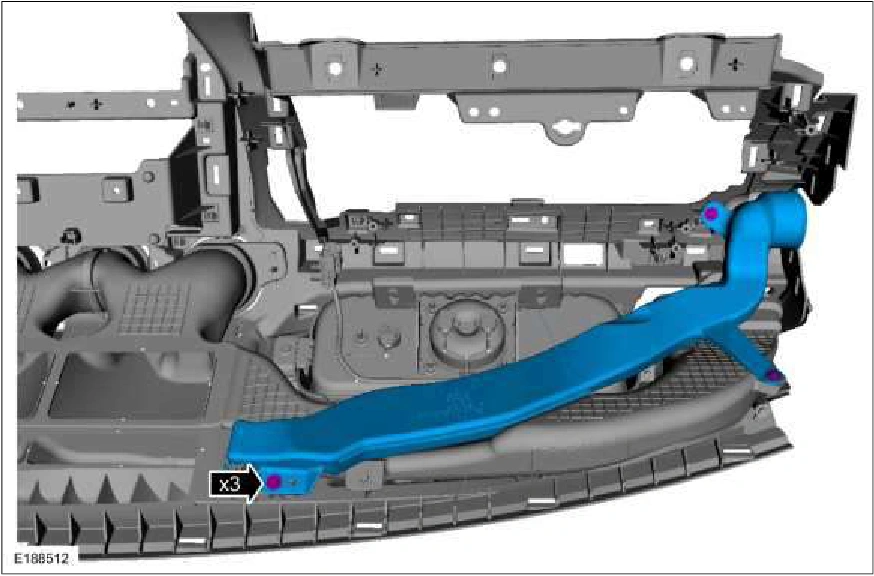

Passenger Airbag — original illustration 2, reference 2152Original colors & callouts · Select to enlarge

7. Install the instrument panel upper section. Refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).

8. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
