Item Description Steel Type — 2016 workshop reference 2229

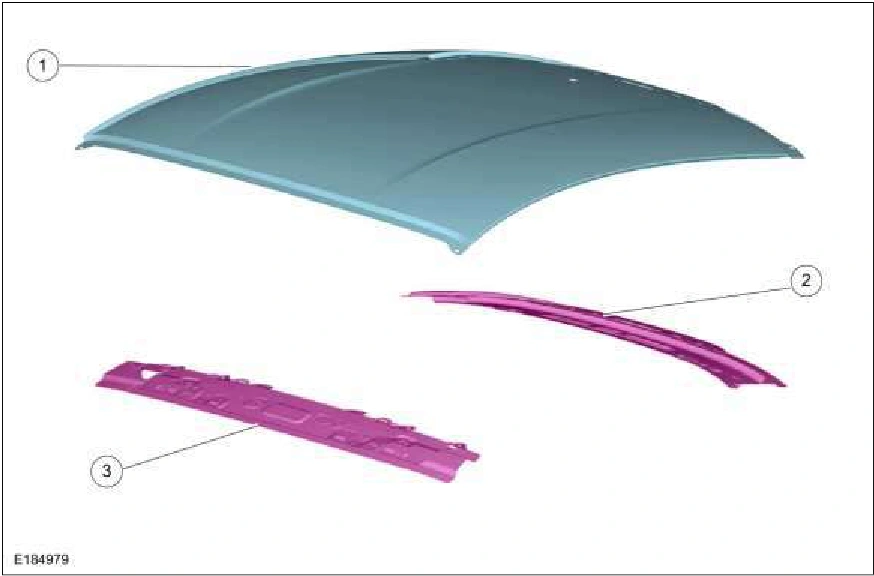

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 1, reference 2229Original colors & callouts · Select to enlarge

Item	Description	Steel Type
1	Roof panel	Bake Hardened (BH) 180 steel
2	Rear window frame	Dual Phase Steel (DP) 1000 steel
3	Windshield header reinforcement	Dual Phase Steel (DP) 1000 steel

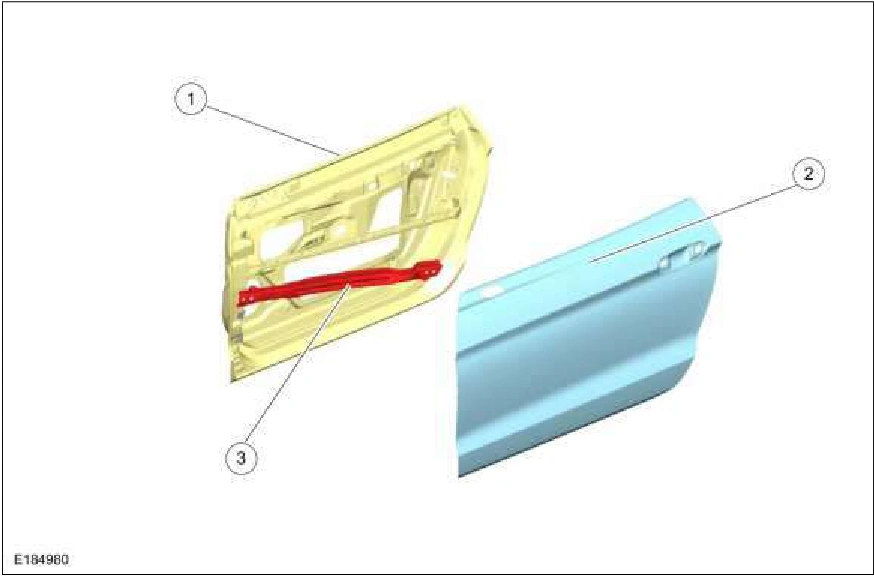

Front Door

NOTE: LH side shown, RH side similar.

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 2, reference 2229Original colors & callouts · Select to enlarge

Source reference 2229
