501-26 Body Repairs - Vehicle Specific Information and Tolerance

2016 MustangReference 2,227 / 6,619HTML edition

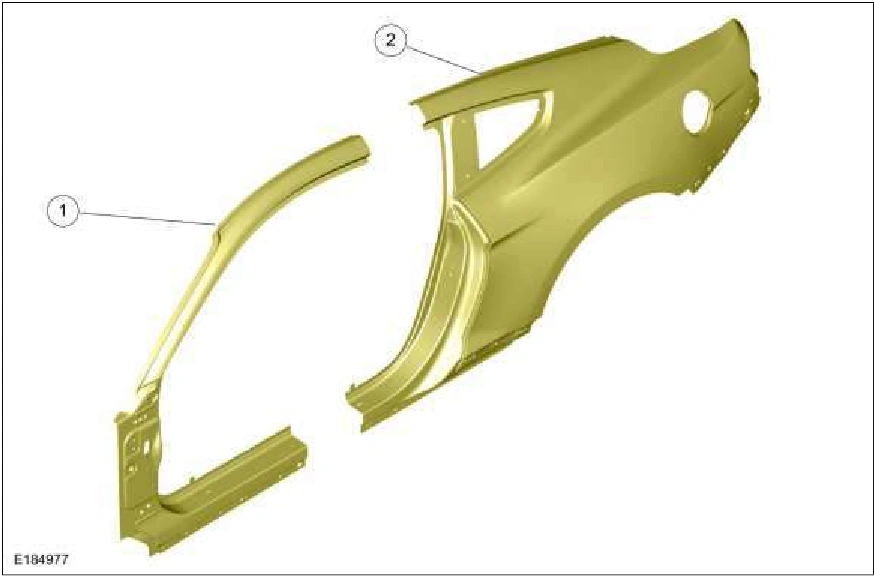

Body Side Outer Panels-Convertible

NOTE: LH side shown, RH side similar.

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 1, reference 2227Original colors & callouts · Select to enlarge

Item	Description	Steel Type
1	Door frame panel	Mild steel
2	Body side panel	Mild steel

Roof Panel-Convertible
