1 | A-pillar inner reinforcement | Dual Phase Steel (DP) 1000 steel |
2 | A-pillar bracket | Dual Phase Steel (DP) 1000 steel |
3 | Bracket | Dual Phase Steel (DP) 1000 steel |
4 | Inner wheelhouse panel | Mild steel |
5 | Quarter panel outer | Mild steel |
6 | C-pillar reinforcement | Mild steel |
7 | Filler panel | Mild steel |
8 | Quarter panel extension | Mild steel |
9 | Inner quarter panel and wheelhouse | Dual Phase Steel (DP) 500 steel |
10 | B-pillar inner assembly | Boron steel |
11 | Rocker panel reinforcement | Martensite 1100 |
12 | A-pillar assembly | High-Strength Low Alloy (HSLA) 350 steel |
13 | Reinforcement | Mild steel |

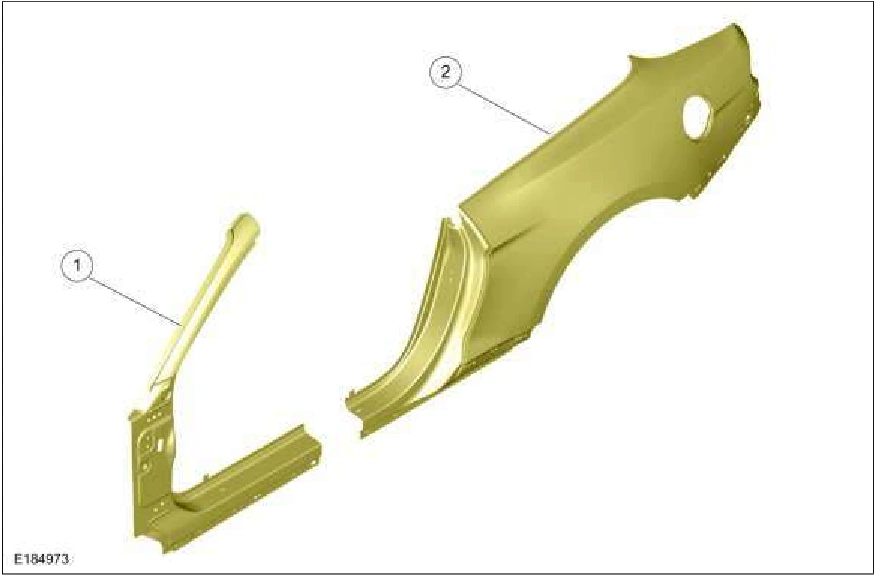

Body Side Outer Panels-Convertible
NOTE: LH side shown, RH side similar.
Item | Description | Steel Type |
|---|---|---|
1 | Door frame panel | Mild steel |
2 | Body side panel | Mild steel |
Body Side Inner Panels-Coupe
NOTE: LH side shown, RH side similar.
