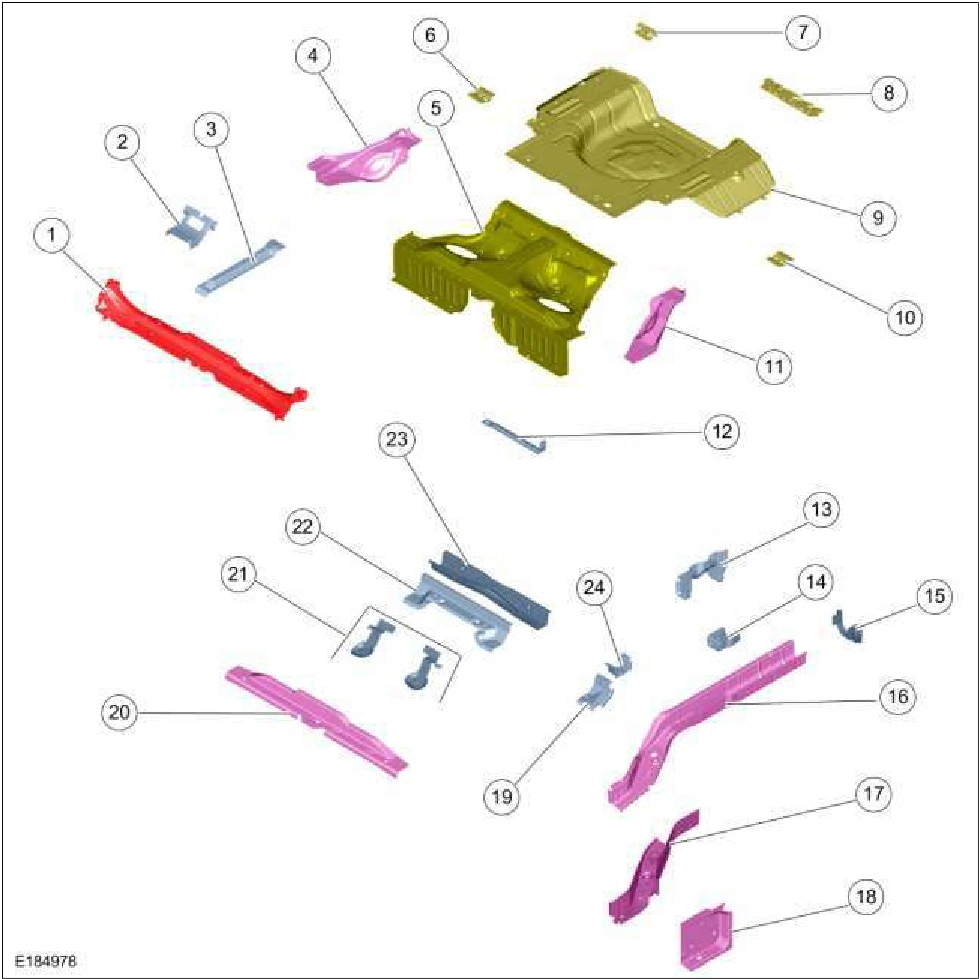

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 1, reference 2233Original colors & callouts · Select to enlarge

Item	Description	Steel Type
1	Crossmember	Boron steel
2	Reinforcement	High-Strength Low Alloy (HSLA) 350 steel
3	Reinforcememt	High-Strength Low Alloy (HSLA) 350 steel
4	Reinforcement	Dual Phase Steel (DP) 800 steel
5	Center floor pan	Mild steel
6	Bracket	Mild steel
7	Bracket	Mild steel
8	Bracket	Mild steel
9	Rear floor pan	Mild steel
10	Bracket	Mild steel
11	Reinforcement	Dual Phase Steel (DP) 800 steel
12	Reinforcement	High-Strength Low Alloy (HSLA) 350 steel
13	Bracket	High-Strength Low Alloy (HSLA) 350 steel
