Rear Panels and Package Tray- Coupe

501-26 Body Repairs - Vehicle Specific Information and Tolerance

2016 MustangReference 2,234 / 6,619HTML edition
← Chapter contents

14

Floor side member reinforcement

High-Strength Low Alloy (HSLA) 350 steel

15

Bumper mounting bracket

High-Strength Low Alloy (HSLA) 350 steel

16

Floor side member

Dual Phase Steel (DP) 800 steel

17

Floor side member

Dual Phase Steel (DP) 800 steel

18

Floor side member

Dual Phase Steel (DP) 800 steel

19

Brace

High-Strength Low Alloy (HSLA) 350 steel

20

Crossmember

Dual Phase Steel (DP) 800 steel

21

Reinforcement

High-Strength Low Alloy (HSLA) 350 steel

22

Crossmember

High-Strength Low Alloy (HSLA) 350 steel

23

Crossmember

High-Strength Low Alloy (HSLA) 350 steel

24

Bracket

High-Strength Low Alloy (HSLA) 350 steel

Rear Panels and Package Tray- Coupe

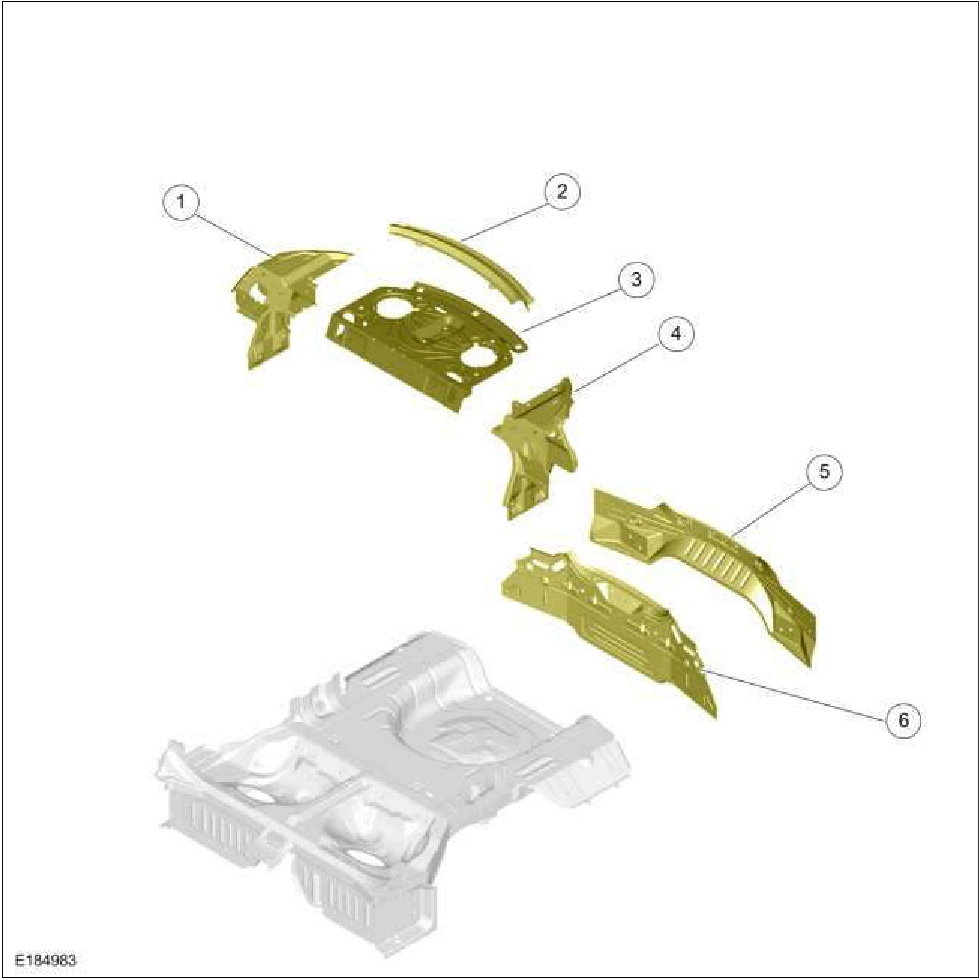

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 1, reference 2234Original colors & callouts · Select to enlarge
Source reference 2234
