501-26 Body Repairs - Vehicle Specific Information and Tolerance — 2016 workshop reference 2238

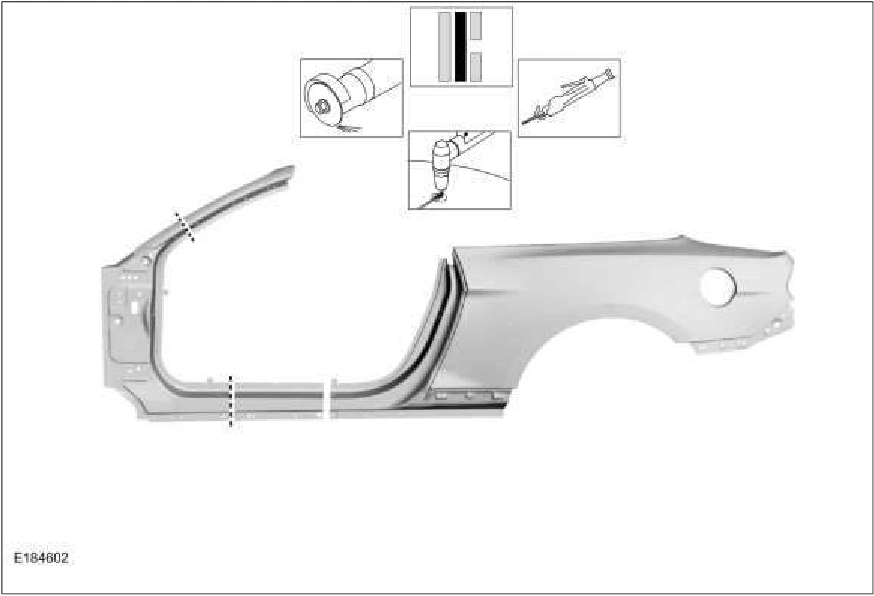

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 1, reference 2238Original colors & callouts · Select to enlarge

3. As a general rule, sectioning cut points should be chosen to result in the smallest repair area possible. Use the General Equipment: Air Body Saw Use the General Equipment: Plasma Cutter Use the General Equipment: Spherical Cutter

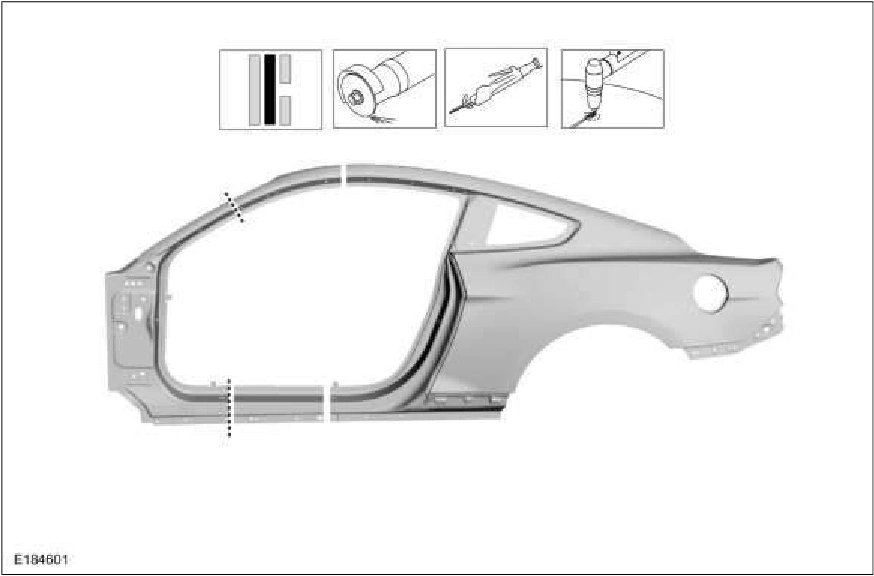

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 2, reference 2238Original colors & callouts · Select to enlarge

4. Detrim the vehicle as necessary and remove spot welds from the damaged area. Use the General Equipment: Spot Weld Drill Bit

5. NOTE: Use resistance spotwelding equipment where possible. This will produce a higher quality repair.

NOTE: When welding overlapping surfaces or substrates, apply a high quality weld-through primer between the surfaces prior to welding.
