Ride Height Measurement — 2016 workshop reference 2425

Ride Height Measurement — original illustration 1, reference 2425Original colors & callouts · Select to enlarge

3. Subtract measurement 2 from measurement 3 to obtain the front ride height.

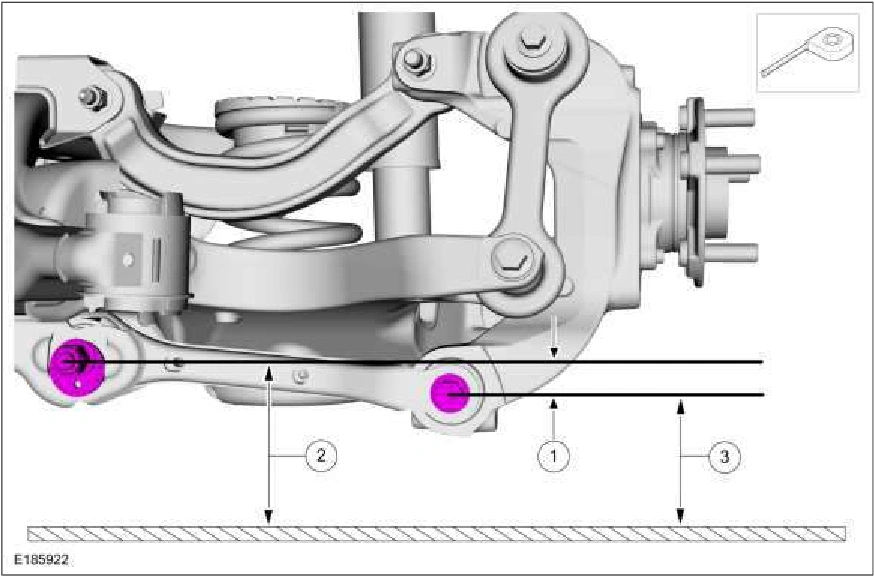

Ride Height Measurement — Rear

Step 4

1. Ride height = 2-3

2. Measurement 2

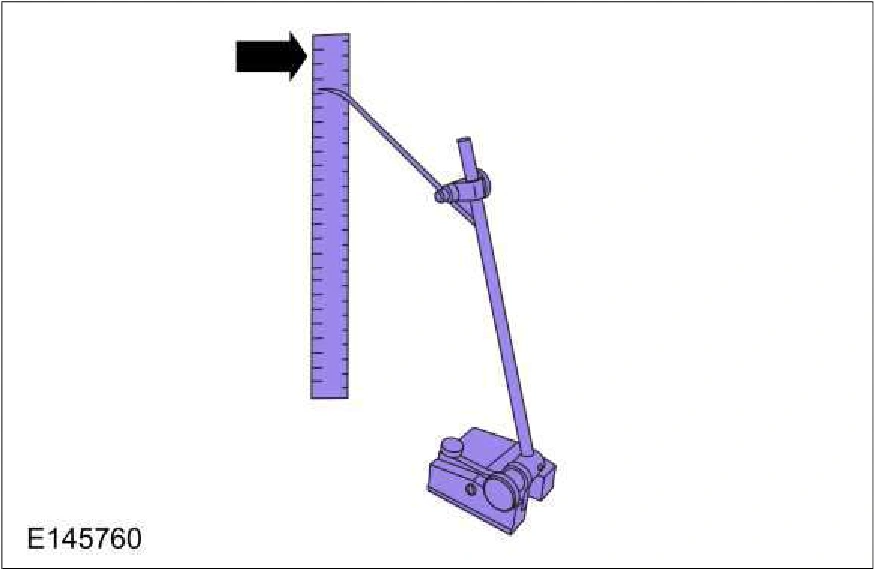

3. Measurement 3 Use the General Equipment: Surface Gauge

Ride Height Measurement — original illustration 2, reference 2425Original colors & callouts · Select to enlarge

5. Measure the distance between the flat level surface and the center of the toe link inboard cam bolt (measurement 2).

6. Measure the distance between the flat level surface and the center of the toe link outboard bolt
