204-00 Suspension System - General Information 2016 Mustang

General Procedures Procedure revision date: 01/13/2015

Rear Toe Adjustment

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

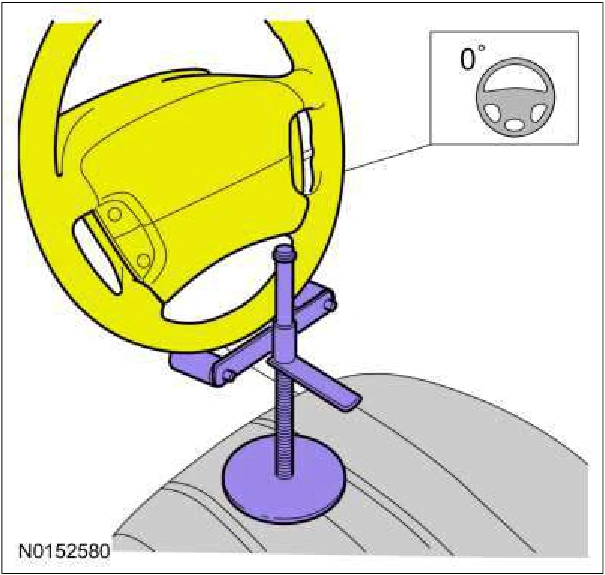

1. Using a holding device, hold the steering wheel in the straight-ahead position.

Rear Toe Adjustment — original illustration 1, reference 2422Original colors & callouts · Select to enlarge

2. Using alignment equipment and the manufacturer's instructions, check the rear toe setting on both sides. Use the General Equipment: Wheel Alignment System

Step 3

1. NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.

Loosen the toe link nut approximately one full turn. Torque : 129 lb.ft (175 Nm)

2. Rotate the toe link bolt to achieve the specified toe setting.
