Front Toe Adjustment

204-00 Suspension System - General Information 2016 Mustang

General Procedures Procedure revision date: 01/13/2015

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Make sure that the vehicle is standing on a level surface.

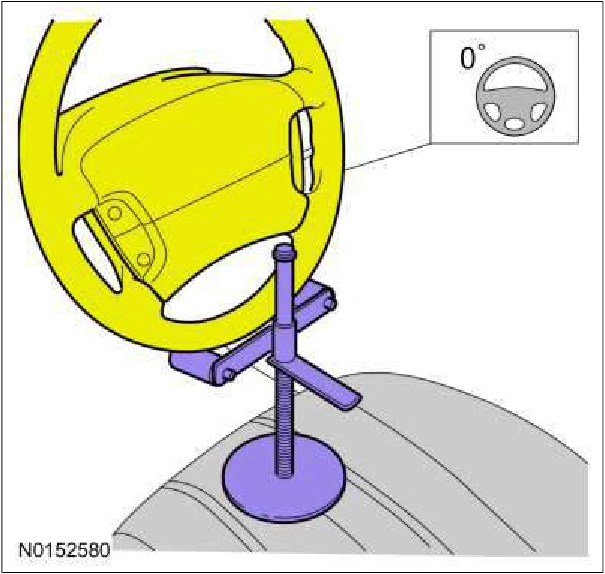

1. Steering wheel in straight ahead position.

Front Toe Adjustment — original illustration 1, reference 2419Original colors & callouts · Select to enlarge

2. Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides. Use the General Equipment: Wheel Alignment System

Step 3

1. On both sides. Loosen the outer tie rod end jamb nut. Torque : 76 lb.ft (103 Nm)

2. On both sides. Position aside the steering gear boot clamp.

3. NOTE: Do not allow the steering gear bellows to twist when the inner tie rod is rotated.

On both sides. Rotate the inner tie rods until the toe reading is within specifications.

Source reference 2419
