Front Camber Adjustment — 2016 workshop reference 2416

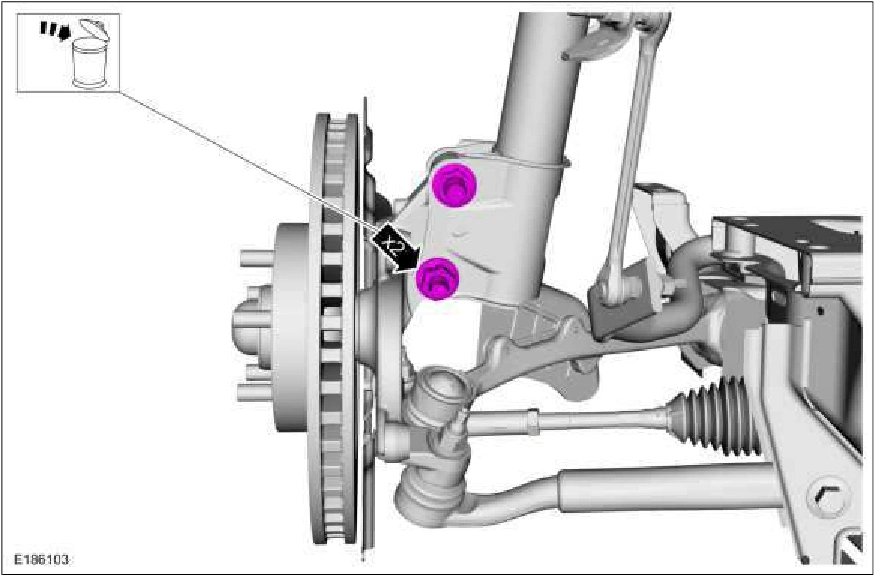

Front Camber Adjustment — original illustration 1, reference 2416Original colors & callouts · Select to enlarge

5. NOTE: Do not fully tighten the strut-to-spindle bolts and nuts until the alignment has been corrected.

NOTE: Original equipment bolts are splined, service bolts are smooth and smaller in diameter which allows for camber adjustment.

On both sides. Position the wheel spindle and install the 2 new service strut-to-spindle bolts and nuts and tighten until snug.

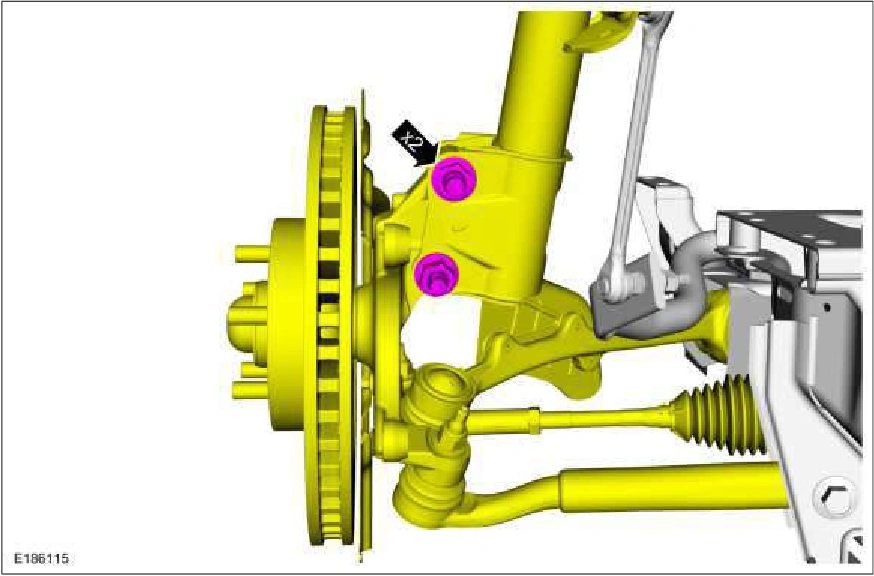

Front Camber Adjustment — original illustration 2, reference 2416Original colors & callouts · Select to enlarge

6. On both sides. Position the wheel speed sensor harness.
