Front Camber Adjustment

204-00 Suspension System - General Information 2016 Mustang

General Procedures Procedure revision date: 10/1/2015

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1. Using alignment equipment and the manufacturer's instructions, measure the front camber. Use the General Equipment: Wheel Alignment System

2. Remove the wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

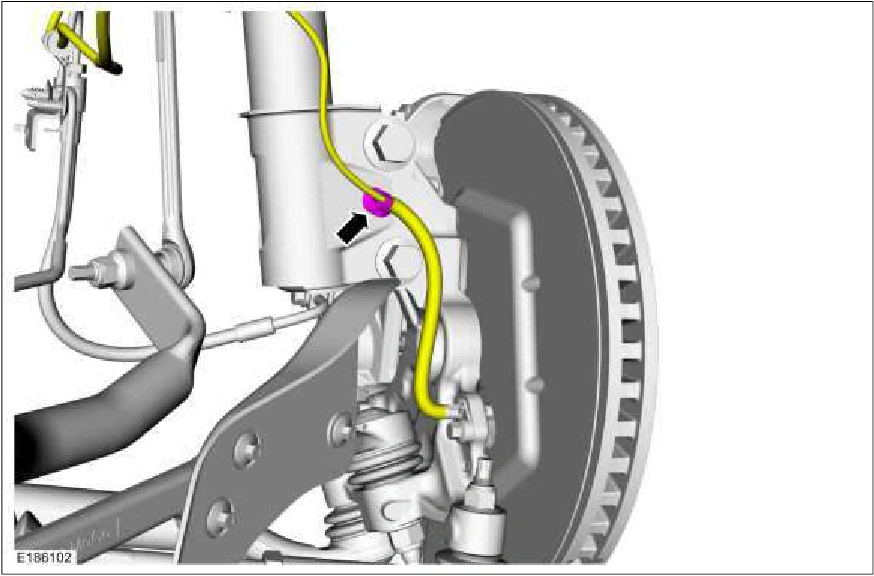

3. On both sides. Unclip and position aside the wheel speed sensor harness.

Front Camber Adjustment — original illustration 1, reference 2415Original colors & callouts · Select to enlarge

4. On both sides. Remove and discard the strut-to-spindle bolts and nuts.
