Front Camber Adjustment — 2016 workshop reference 2417

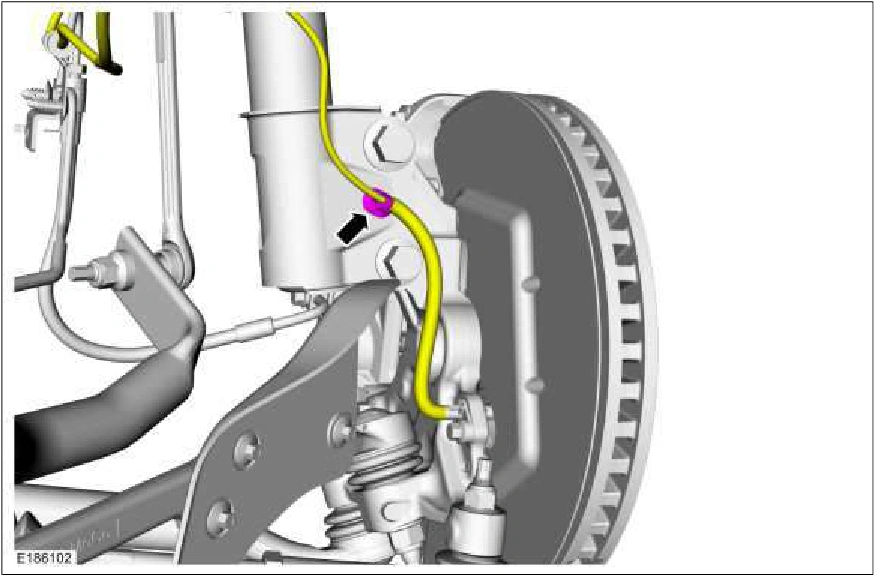

Front Camber Adjustment — original illustration 1, reference 2417Original colors & callouts · Select to enlarge

7. Install the wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

8. Using alignment equipment and the manufacturer's instructions, measure the front camber. Use the General Equipment: Wheel Alignment System

9. On both sides. Tighten the strut-to-spindle bolts and nuts. Torque : 184 lb.ft (250 Nm)

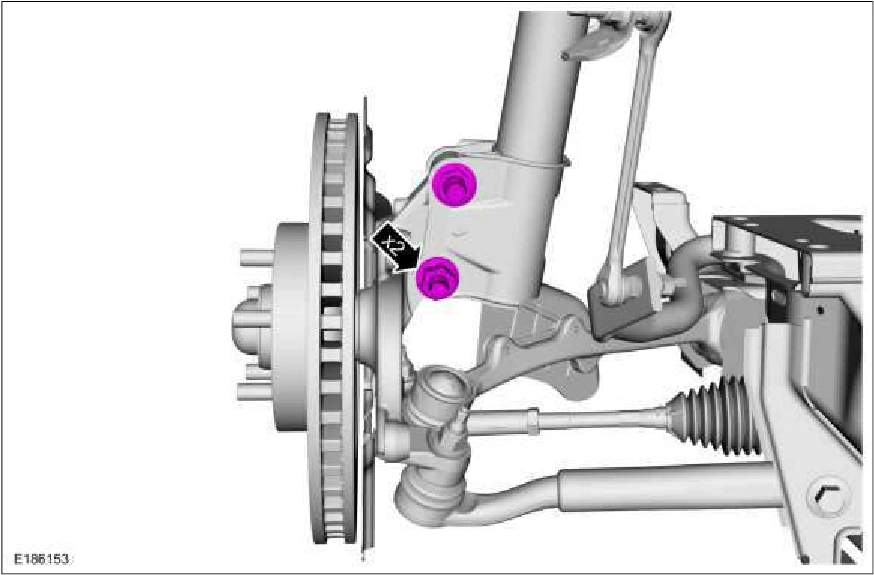

Front Camber Adjustment — original illustration 2, reference 2417Original colors & callouts · Select to enlarge

10. Recheck alignment to verify camber change and adjust front toe if necessary. Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
