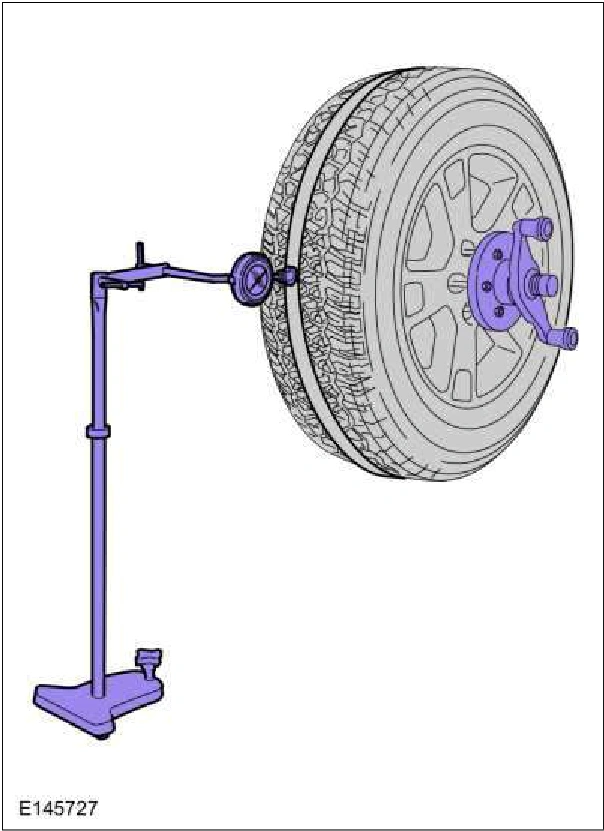

Wheels and Tires — original illustration 1, reference 2548Original colors & callouts · Select to enlarge

6. While slowly and constantly rotating the wheel and tire assembly (or wheel), measure the radial runout.

Note the variance (runout) from 0 on the dial of the gauge. If the runout reading of a wheel and tire assembly is greater than 1.14 mm (0.045 in), locate and temporarily mark the high spot and runout reading on the sidewall of the tire and carry out the Match Mounting procedure to optimize the wheel and tire assembly. If the runout reading of a wheel and tire assembly is 1.14 mm (0.045 in) or less, permanently mark the high spot and the runout reading on the inward sidewall of the tire for reference during future wheel and tire service. Balance the assembly and install the wheel and tire on the vehicle using the Wheel-to-Hub Optimization procedure.

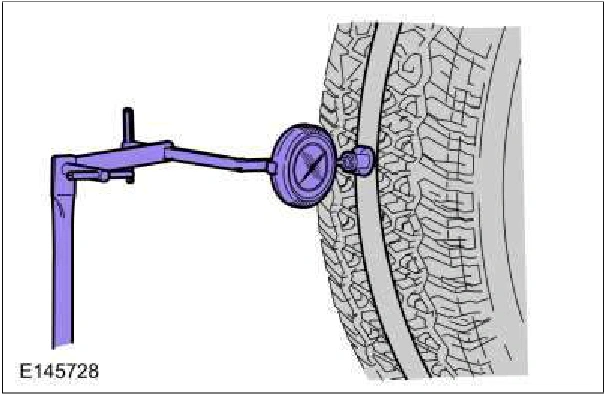

Wheels and Tires — original illustration 2, reference 2548Original colors & callouts · Select to enlarge
