Radial Runout Measurement - Loaded Hunter Road Force® Method
NOTE: Diagnosis of tire/wheel vibration should not be performed on tires with less than 198.8 mi (320 km). Some initial tire/wheel vibration issues (such as flat spotting) may correct themselves after the tires have been in service for 198.8 mi (320 km). This procedure is intended to assist with the diagnosis of wheel and tire assembly runout and/or force variation issues. The Hunter Road Force® 9700 Series Wheel Balancer measures the wheel and tire assembly's loaded runout and the tire's radial spring rate. The balancer then converts the runout into pounds of force (termed as Road Force). Measuring loaded runout (Road Force) is more effective than measuring unloaded runout using a dial indicator.
1. Using a tire crayon, record the vehicle position on the inward sidewall of all 4 tires.
2. Remove the wheel and tire assemblies. REFER to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
3. NOTE: Use only a digital tire pressure gauge any time tire pressures are measured to be sure that accurate values are obtained.
Make sure that the tire pressures are set to the correct pressure as indicated on the VC label.
4. NOTICE: Make sure that the correct wheel balancer adapters are used when mounting the
assembly to the wheel balancer or damage to the wheel may occur.
NOTE: Make sure that the wheel and tire assembly is clean and free of foreign material prior to installation on the balancer.
NOTE: The wheel balancer inflation station must be turned OFF for tires with inflation pressures of
60.0 psi (414 kPa) or above.

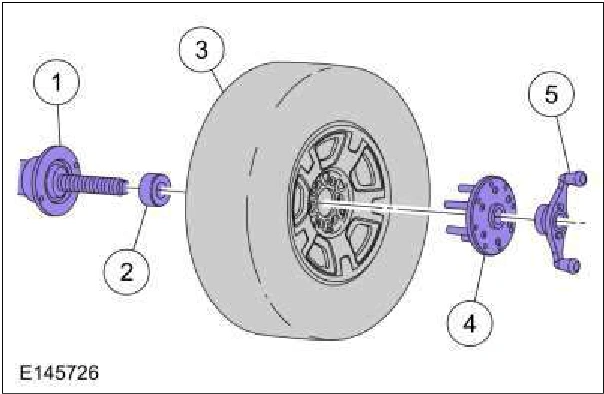

Mount the wheel and tire assembly on a suitable wheel balancer using the correct wheel balancer adapters as shown.
Item | Description |
|---|---|
1 | Wheel balancer |
