Wheel and Tire

204-04A Wheels and Tires

2016 MustangReference 2,558 / 6,619HTML edition
← Chapter contentsProcedure contents

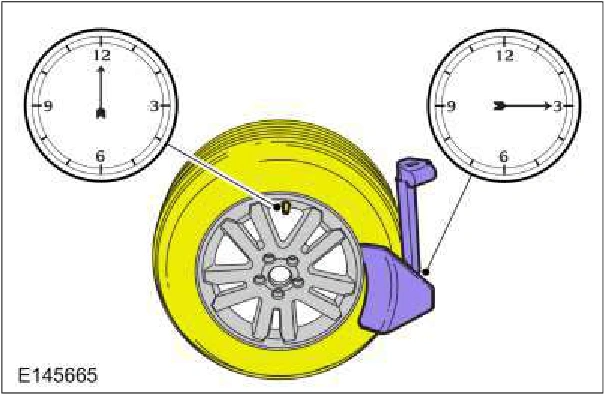

Wheel and Tire — original illustration 1, reference 2558Original colors & callouts · Select to enlarge

4. NOTE: Index-mark the valve stem and wheel weight positions on the tire.

Place the wheel and tire assembly on the turntable of the tire machine with the valve stem at the 11:30 position and the machine arm at the 12 o'clock position and dismount the outer bead from the wheel.

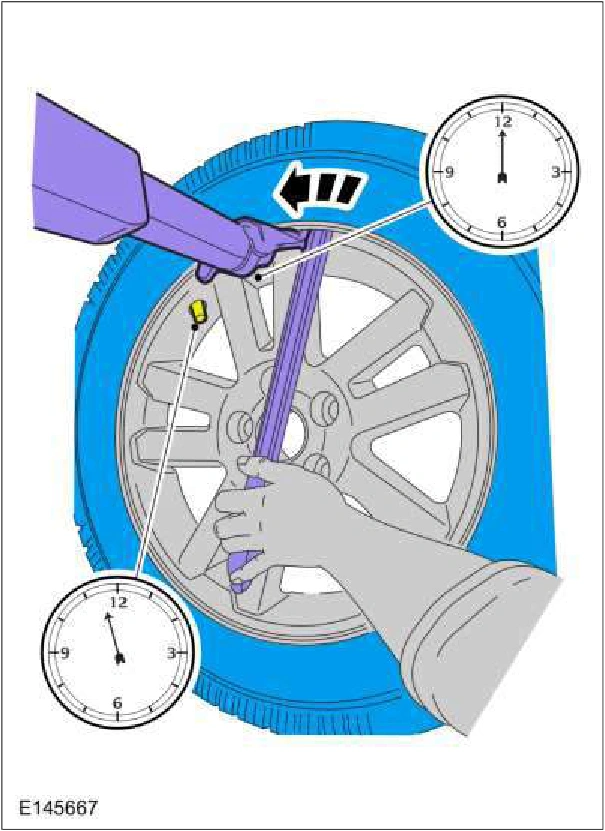

Wheel and Tire — original illustration 2, reference 2558Original colors & callouts · Select to enlarge

5. Reset the wheel and tire assembly on the turntable of the tire machine with the valve stem at the 11:30 position and the machine arm at the 12 o'clock position and dismount the inner bead from the wheel.

6. NOTE: A new valve stem must be installed whenever a new tire or wheel is installed.

1. Remove and discard the TPMS sensor-to-valve stem screw.

Source reference 2558
