2. Separate the TPMS sensor from the valve stem.

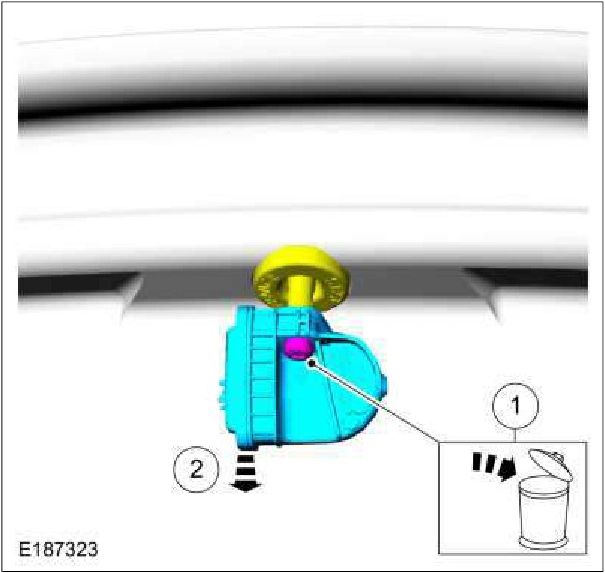

Wheel and Tire — original illustration 1, reference 2559Original colors & callouts · Select to enlarge

7. NOTICE: Use care not to damage the wheel surface when removing the valve stem.

Using a suitable valve stem remover/installer, remove and discard the valve stem. Use the General Equipment: Wooden Block

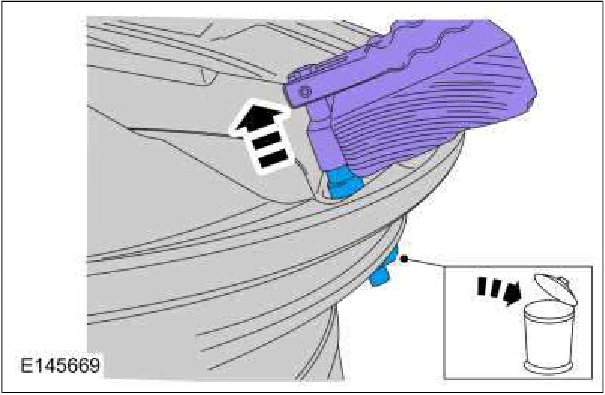

Wheel and Tire — original illustration 2, reference 2559Original colors & callouts · Select to enlarge

NOTE: When installing a new wheel, always install a new valve stem and sensor screw. Reuse theTPMS sensor from the previous wheel if possible. The TPMS will not have to be trained if the sensor is reused.

NOTE: If the TPMS sensor is being reused, inspect the TPMS sensor for damage and install a new sensor as necessary.

8. NOTICE: To prevent TPMS sensor and valve stem damage, the valve stem must be installed onto

the TPMS sensor and then installed into the wheel as an assembly.

Position the new valve stem onto the TPMS sensor and install the new screw. Torque : 13 lb.in (1.5 Nm)

Source reference 2559
