Tire Pressure Monitoring System (TPMS) - System Operation and Component Description

If the tires are inflated to specification at shop temperatures, and the vehicle is moved outdoors when the outdoor ambient temperature is significantly lower, the tire pressure may drop enough to be detected by the TPMS and illuminate the TPMS warning indicator.

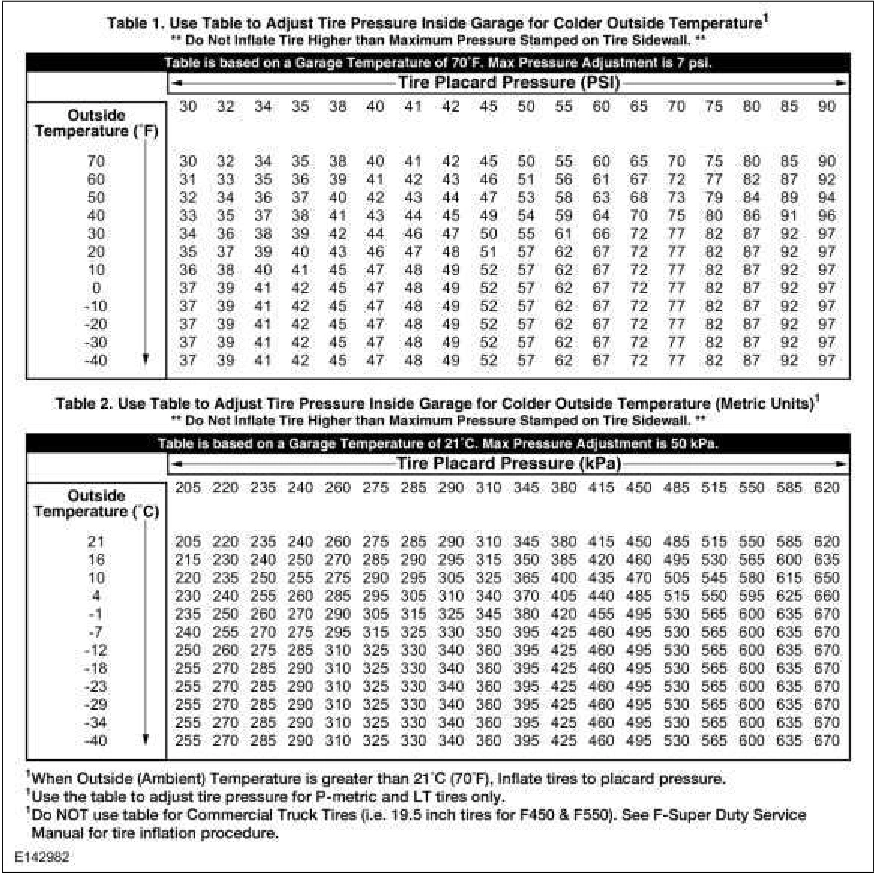

As the ambient temperature decreases by -12.2° C (10° F), tire pressure decreases 6.9 kPa (1 psi). Adjust the tire pressure by 6.9 kPa (1 psi) for each -12.2° C (10° F) of ambient temperature drop as necessary to keep the tire at the specified VC label pressure. To adjust the tire pressure indoors for colder outside temperatures, refer to the following table.

Component Description

BCM

The BCM is a multifunction module which monitors all sensor inputs and all CAN messages relating to the TPMS. The BCM records and retains the unique sensor identifier of each TPMS sensor.

The BCM retains the previous sensor location information following a tire rotation. For the BCM to learn the new sensor location, the sensors must be trained (calibrated) to the BCM. Refer to: Tire Pressure Monitoring System (TPMS) Sensor Location Calibration (204-04B Tire Pressure Monitoring System (TPMS), General Procedures). Additionally, the sensors must be trained when a new BCM is installed.

When installing a new BCM, there are several procedures that must be carried out in order for the module to function correctly. These procedures include, but are not limited to; PMI, anti-theft parameter reset, programming keyless entry remote and setting customer preferences. Refer to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
