Rear Halfshaft — 2016 workshop reference 2776

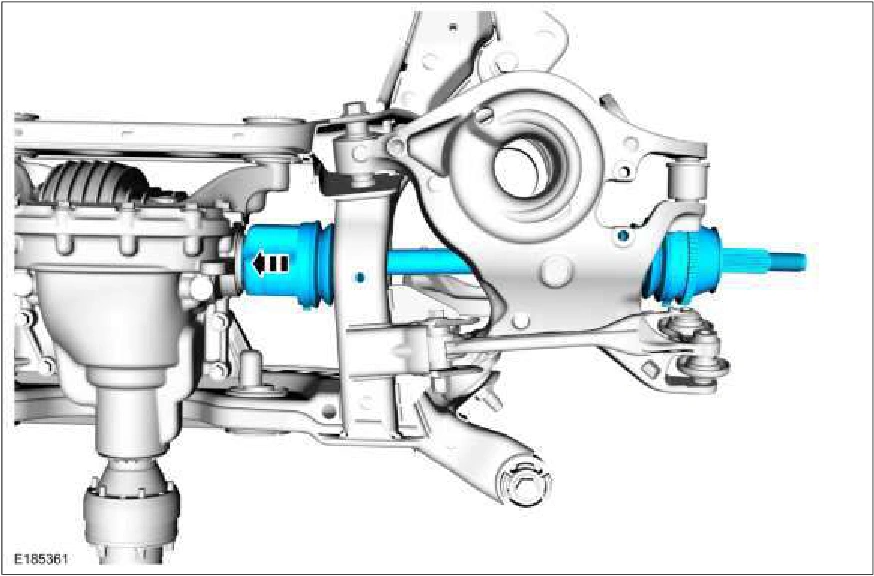

Install the halfshaft until the halfshaft circlip is fully seated.

Rear Halfshaft — original illustration 1, reference 2776Original colors & callouts · Select to enlarge

4. Install the wheel knuckle. Refer to: Wheel Knuckle (204-02 Rear Suspension, Removal and Installation).

5. Check and top off the rear differential fluid. Refer to: Differential Fluid Level Check (205-02 Rear Drive Axle/Differential, General Procedures).
