2016 workshop · Driveline

Rear Halfshaft

205-05 Rear Drive Halfshafts

2016 MustangReference 2,775 / 6,619HTML edition
← Chapter contentsProcedure contents

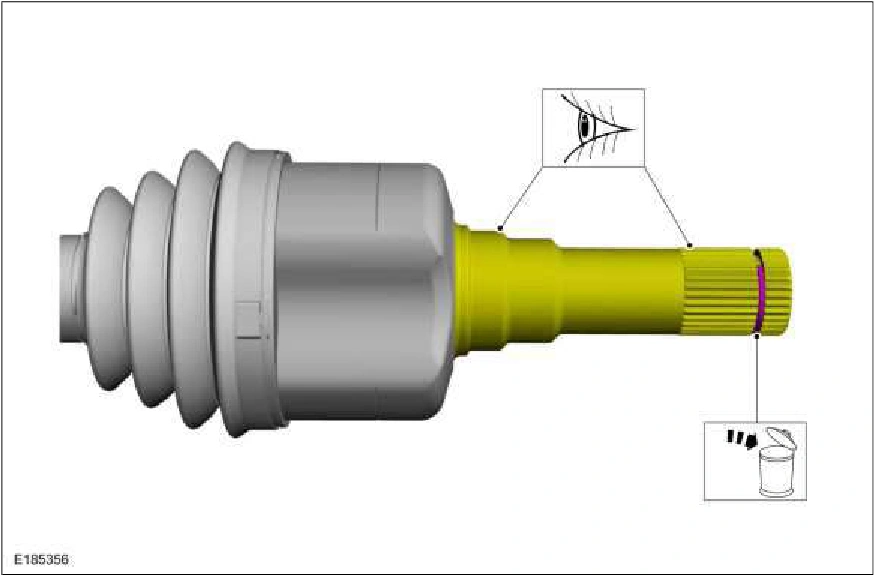

Rear Halfshaft — original illustration 1, reference 2775Original colors & callouts · Select to enlarge

Installation

1. NOTE: The halfshaft seal has to be replaced whenever the halfshaft is removed.

Replace the halfshaft seal. Refer to: Rear Halfshaft Seal (205-02 Rear Drive Axle/Differential, Removal and Installation).

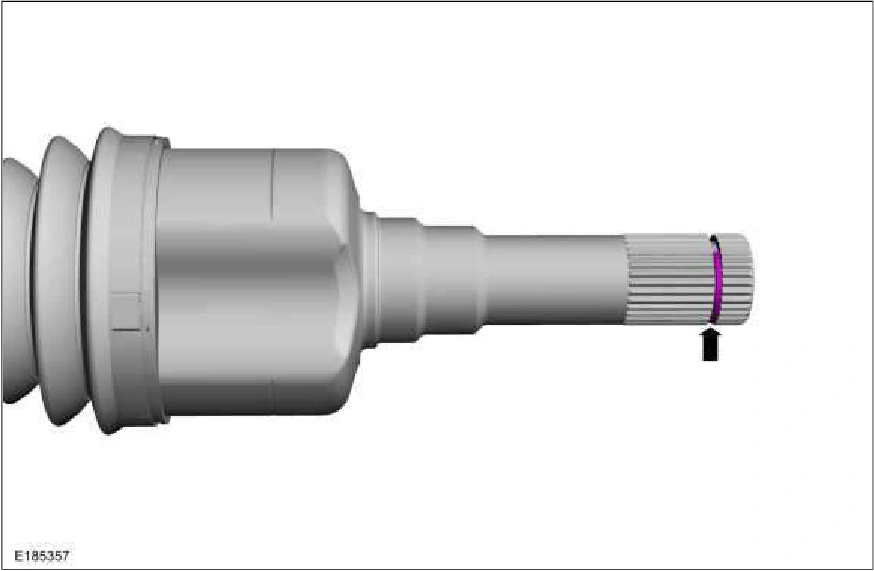

2. Install a new inner halfshaft circlip.

Rear Halfshaft — original illustration 2, reference 2775Original colors & callouts · Select to enlarge

3. NOTICE: After insertion, pull the halfshaft inner end to make sure the circlip is locked.

NOTE: When seated correctly, the halfshaft retainer circlip can be felt as it snaps into the differential side gear groove.
