Outer Constant Velocity (CV) Joint Boot — 2016 workshop reference 2772

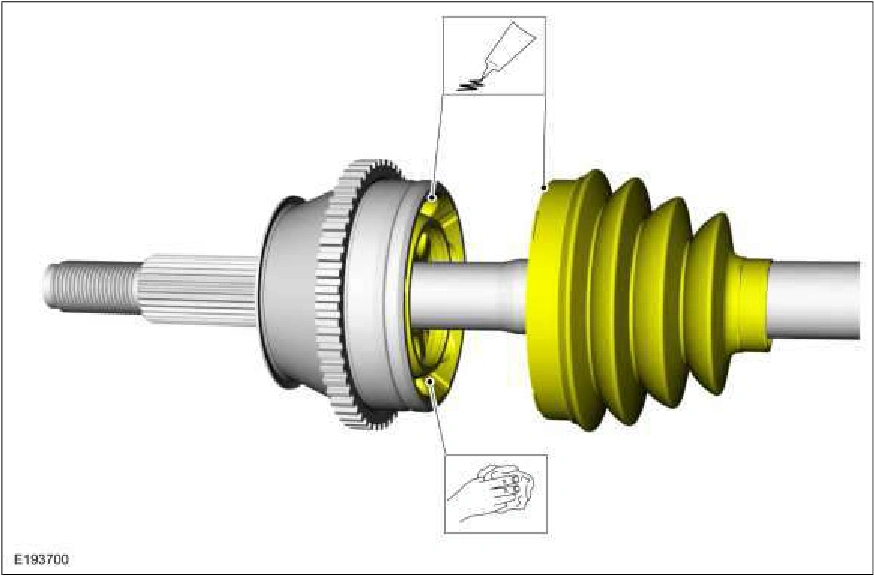

Outer Constant Velocity (CV) Joint Boot — original illustration 1, reference 2772Original colors & callouts · Select to enlarge

2. Install the CV joint housing.

1. NOTE: When installing the CV joint housing, insert a small flat blade screwdriver under the CV joint boot seat to allow air to escape.

Using a flat blade screw driver to allow air to escape, install the CV joint housing. Use the General Equipment: Flat Headed Screw Driver

2. Using boot clamp pliers, install the new CV joint boot clamps. Use the General Equipment: Boot Clamp Pliers

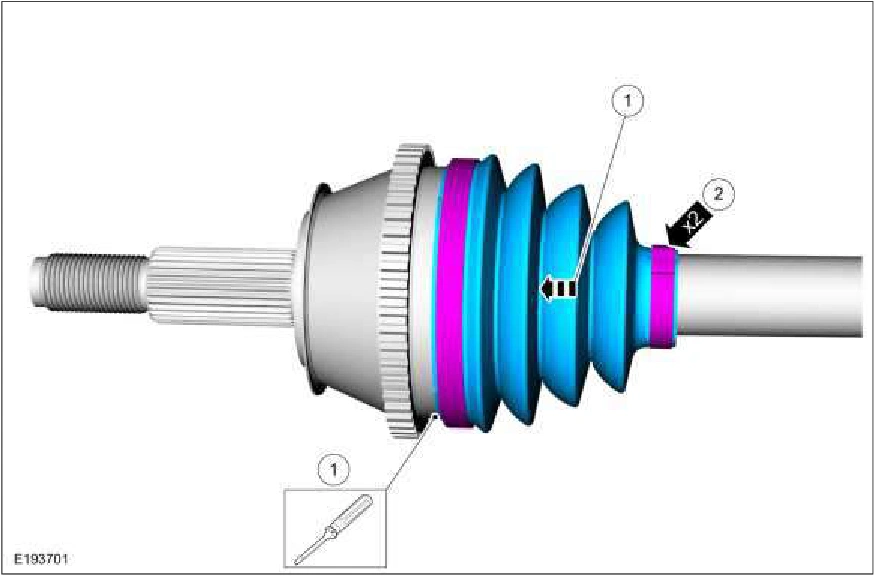

Outer Constant Velocity (CV) Joint Boot — original illustration 2, reference 2772Original colors & callouts · Select to enlarge

3. Install the halfshaft. Refer to: Rear Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).

Source reference 2772
