Outer Constant Velocity (CV) Joint Boot

205-05 Rear Drive Halfshafts 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Special Tool(s) / General Equipment

Flat Headed Screw Driver

Boot Clamp Pliers

Removal

NOTE: Only the RH halfshaft outer CV joint boot is serviceable.

1. Remove the inner CV joint boot. Refer to: Inner Constant Velocity (CV) Joint Boot (205-05 Rear Drive Halfshafts, Removal and Installation).

Step 2

1. Remove and discard the CV joint boot clamps.

2. Remove the CV joint boot.

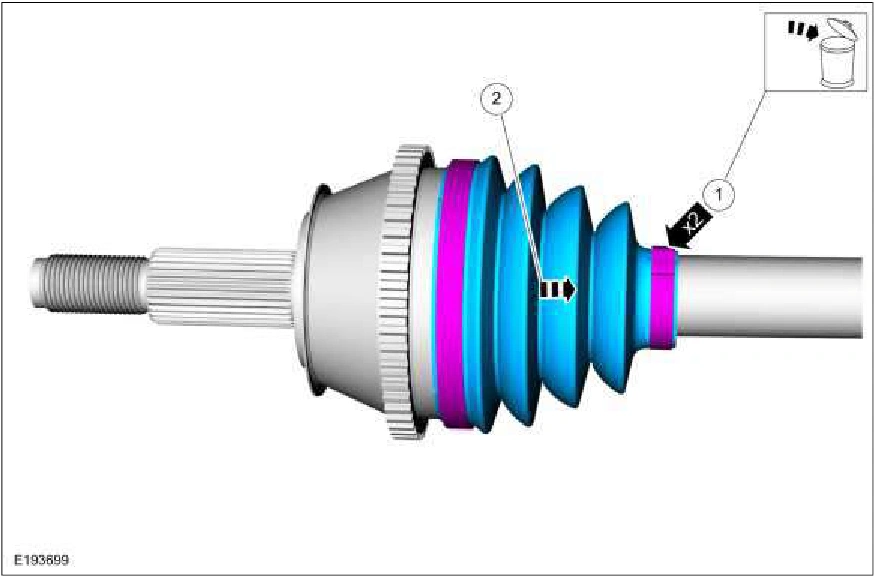

Outer Constant Velocity (CV) Joint Boot — original illustration 1, reference 2771Original colors & callouts · Select to enlarge

Installation

1. Clean and inspect the CV joint cage. Install The grease sachet evenly in the CV joint boot and housing.

Source reference 2771
