Inner Constant Velocity (CV) Joint Boot — 2016 workshop reference 2769

Inner Constant Velocity (CV) Joint Boot — original illustration 1, reference 2769Original colors & callouts · Select to enlarge

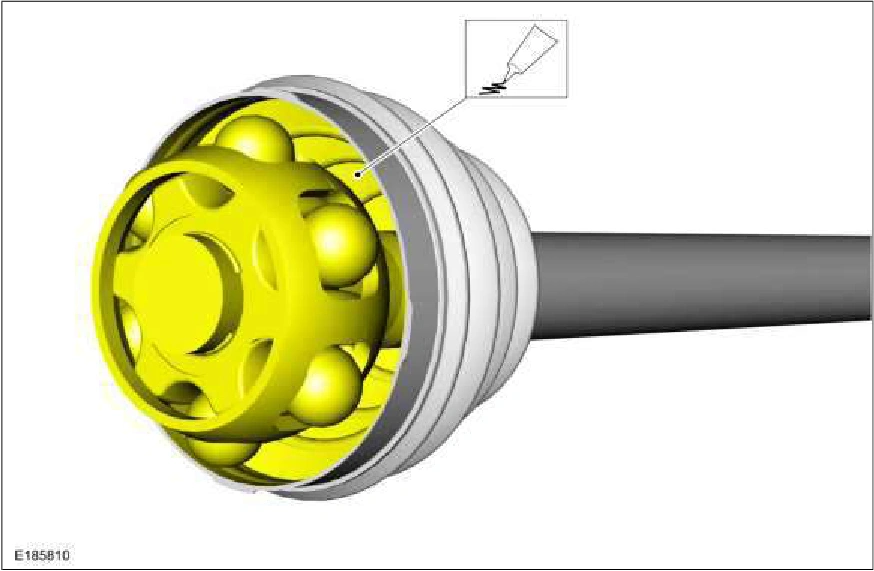

5. Install the grease sachet evenly in the CV joint boot and housing. Material : Constant Velocity Joint Grease (High Temperature) / XG-5 (WSS-M1C258-A1)

Inner Constant Velocity (CV) Joint Boot — original illustration 2, reference 2769Original colors & callouts · Select to enlarge

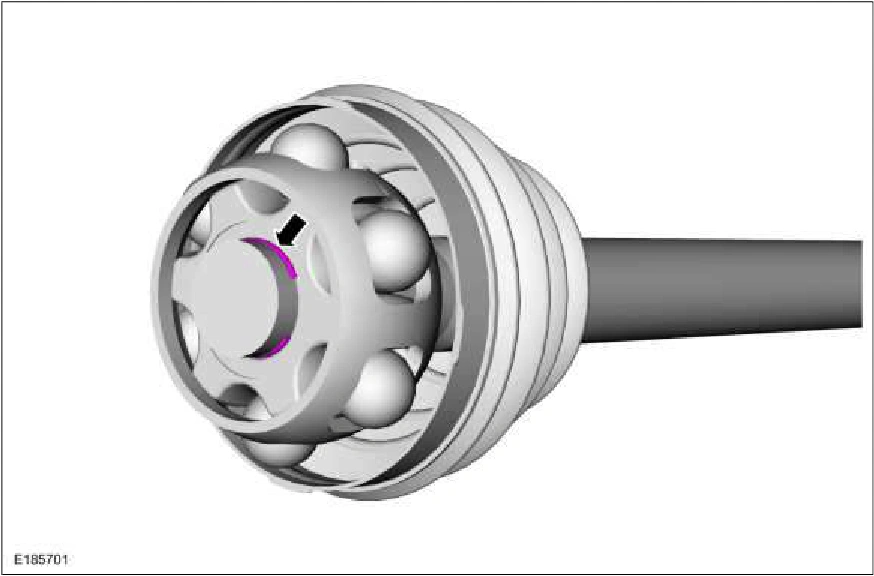

6. NOTE: When installing the CV joint housing, insert a small flat blade screwdriver under the CV joint boot seat to allow air to escape.

Install the inner CV housing.

1. Using a flat blade screw driver to allow air to escape, install the CV joint housing. Use the General Equipment: Flat Headed Screw Driver

2. Using boot clamp pliers, install the new large CV joint boot clamp. Use the General Equipment: Boot Clamp Pliers

Source reference 2769
