Inner Constant Velocity (CV) Joint Boot — 2016 workshop reference 2766

Inner Constant Velocity (CV) Joint Boot — original illustration 1, reference 2766Original colors & callouts · Select to enlarge

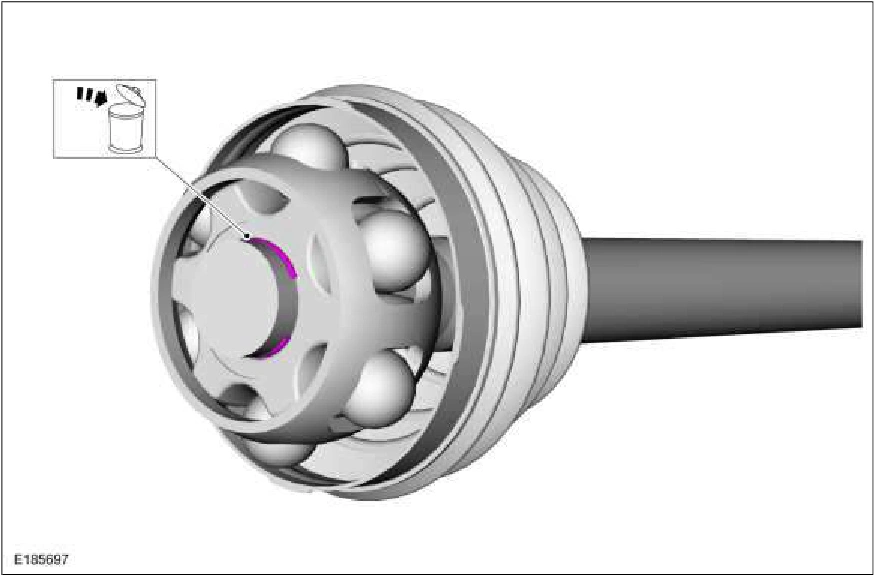

6. NOTE: The CV joint cage balls are free to fall out.

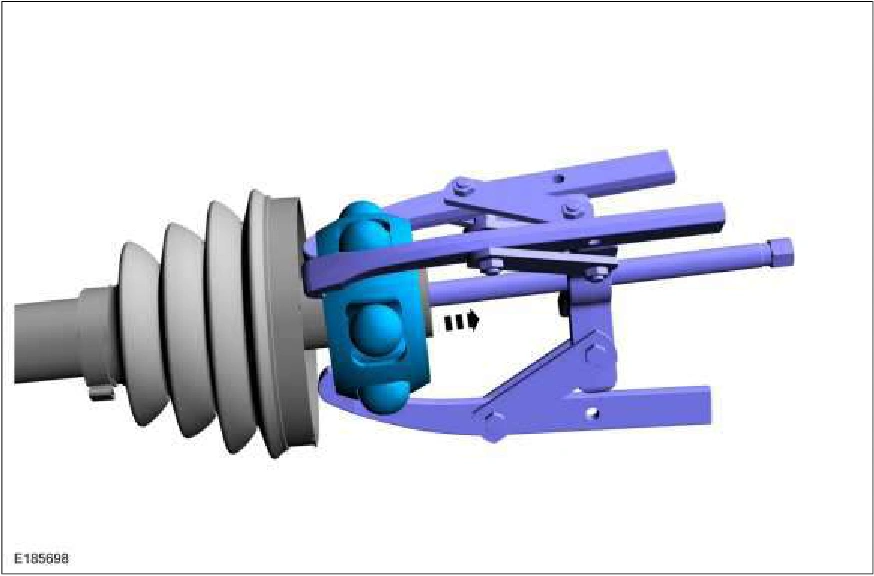

Using a 3-leg puller, remove the CV joint cage. Use the General Equipment: Three Leg Puller

Inner Constant Velocity (CV) Joint Boot — original illustration 2, reference 2766Original colors & callouts · Select to enlarge

7. Remove and discard the small clamp and remove the CV joint boot.

Source reference 2766
