Inner Constant Velocity (CV) Joint Boot — 2016 workshop reference 2768

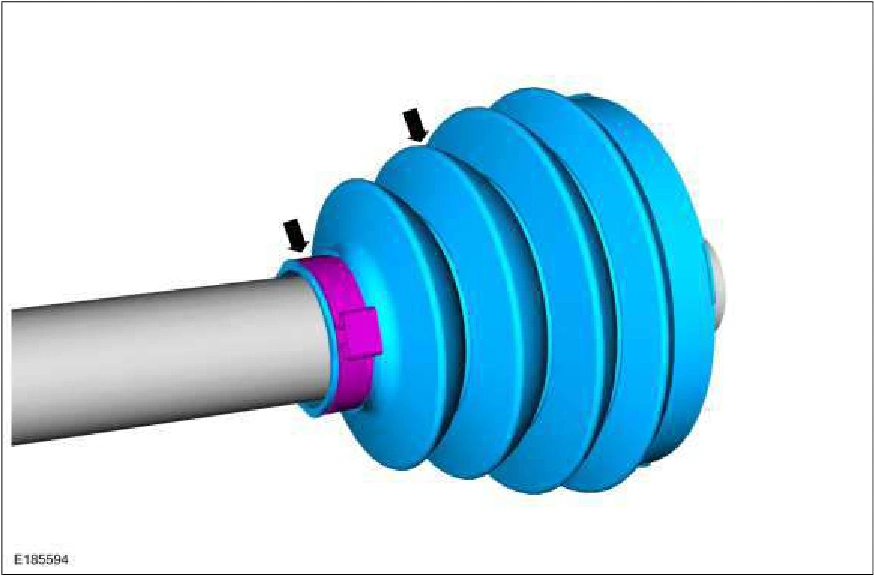

Inner Constant Velocity (CV) Joint Boot — original illustration 1, reference 2768Original colors & callouts · Select to enlarge

3. NOTE: The CV joint cage is a snug fit and may need to tapped on with a soft face mallet.

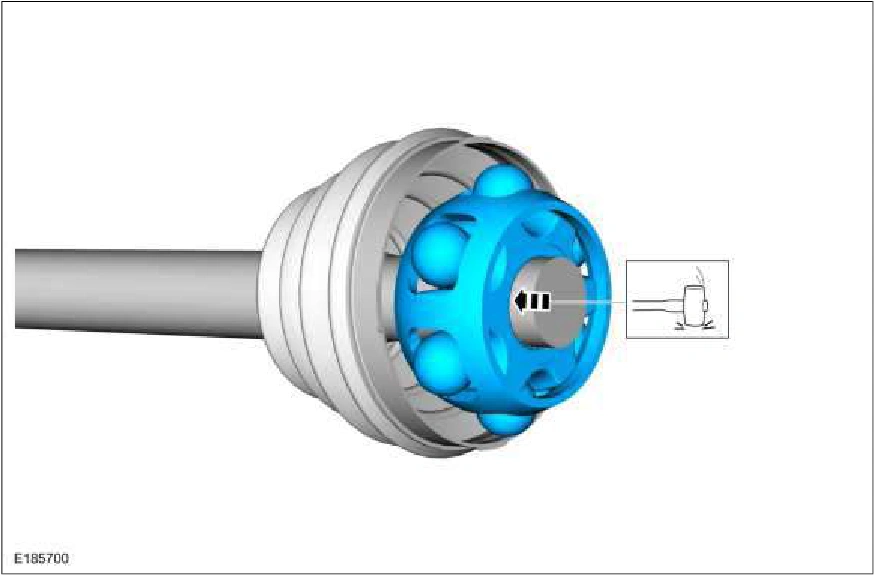

Using a soft face mallet, install the CV joint cage. Use the General Equipment: Rubber Mallet

Inner Constant Velocity (CV) Joint Boot — original illustration 2, reference 2768Original colors & callouts · Select to enlarge

4. Install the new CV joint cage circlip.

Source reference 2768
