Inner Constant Velocity (CV) Joint Boot — 2016 workshop reference 2767

Inner Constant Velocity (CV) Joint Boot — original illustration 1, reference 2767Original colors & callouts · Select to enlarge

Installation

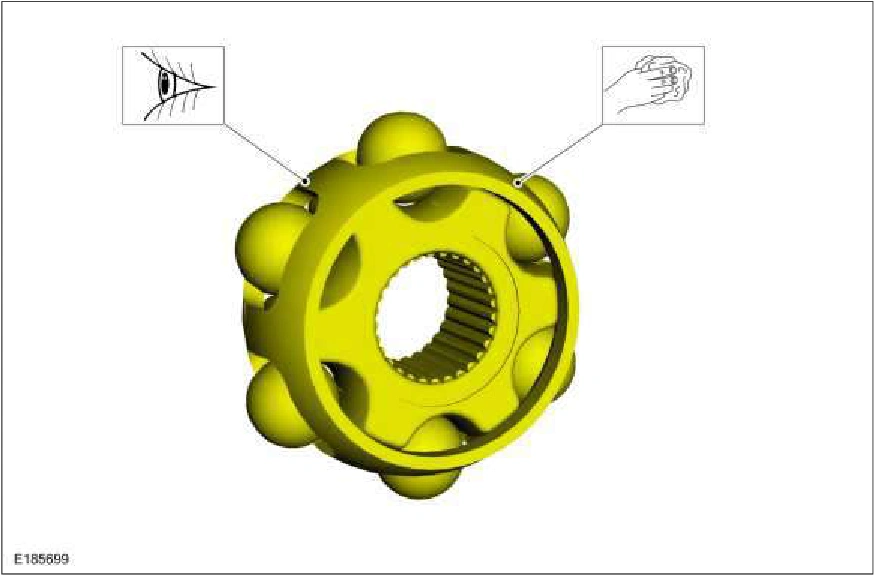

1. NOTE: CV cage is shown assembled.

Clean and inspect the CV joint cage.

Inner Constant Velocity (CV) Joint Boot — original illustration 2, reference 2767Original colors & callouts · Select to enlarge

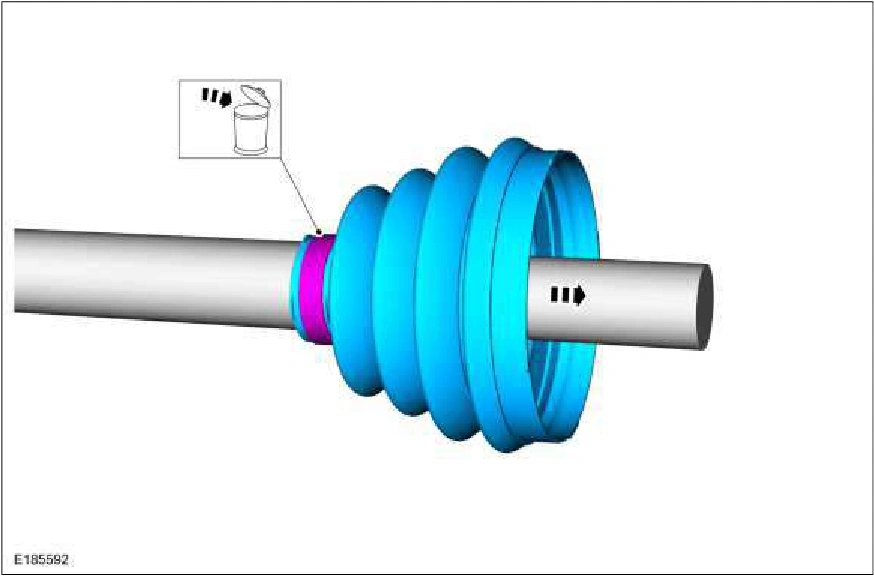

2. Using boot clamp pliers, install the new CV joint boot and the new small CV joint boot clamp. Use the General Equipment: Boot Clamp Pliers

Source reference 2767
