Inner Constant Velocity (CV) Joint Boot

205-05 Rear Drive Halfshafts 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Special Tool(s) / General Equipment

Flat Headed Screw Driver

Boot Clamp Pliers

Rubber Mallet

Three Leg Puller

Materials

Name	Specification
Constant Velocity Joint Grease (High Temperature) XG-5	WSS-M1C258-A1

Removal

1. Remove the halfshaft. Refer to: Rear Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).

Step 2

1. Remove and discard the large CV boot clamp.

2. Position the CV boot to access the inner CV housing retaining ring.

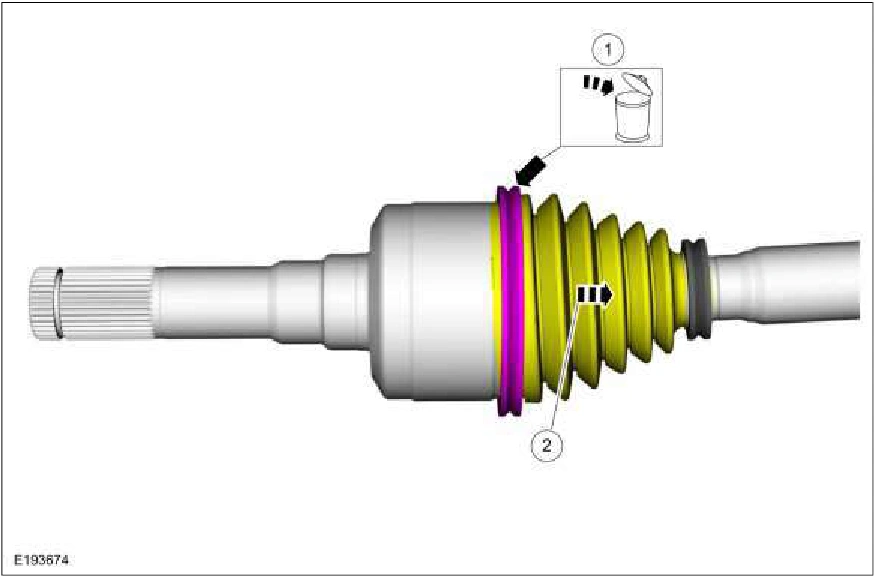

Inner Constant Velocity (CV) Joint Boot — original illustration 1, reference 2764Original colors & callouts · Select to enlarge

3. Remove and discard the inner CV housing retaining ring.

Source reference 2764
