Inner Constant Velocity (CV) Joint Boot

205-05 Rear Drive Halfshafts

2016 MustangReference 2,765 / 6,619HTML edition

← Chapter contents Procedure contents

Inner Constant Velocity (CV) Joint Boot — original illustration 1, reference 2765Original colors & callouts · Select to enlarge

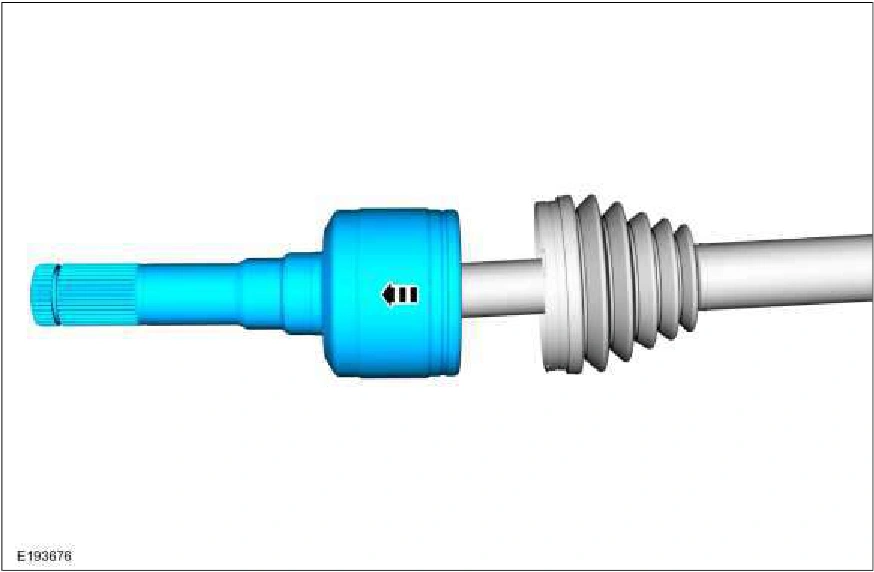

4. Remove the inner CV joint housing.

Inner Constant Velocity (CV) Joint Boot — original illustration 2, reference 2765Original colors & callouts · Select to enlarge

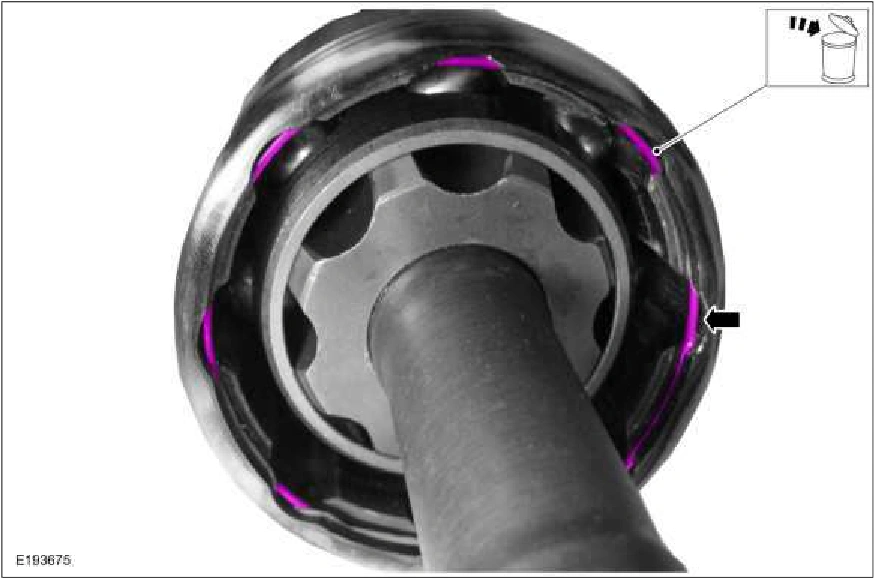

5. NOTE: The CV joint cage balls are free to fall out.

Remove and discard the CV joint cage circlip.

Source reference 2765
